Crop Diverter Vanes—Adjusting

CAUTION:

CQ290017
CQ290017-UN-17JUN13

H98166
H98166-UN-21SEP10

H98708
H98708-UN-19OCT10

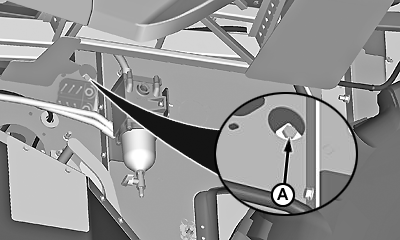

A - Cap Screw

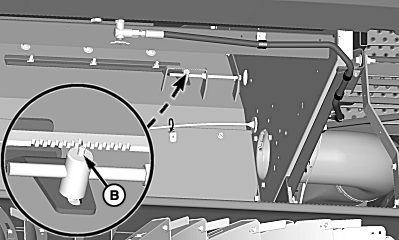

B - Indicator

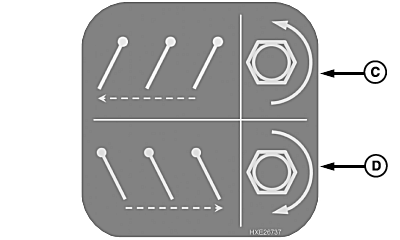

C - Counterclockwise

D - Clockwise

Shut OFF engine, set parking brake and remove key.

Turning cap screw (A) adjusts indicator (B) and moves crop diverter vanes.

  • Counterclockwise (C) - moves vanes towards left-hand side of machine.
  • Clockwise (D) - moves vanes towards right-hand side of machine.

NOTE: Adjust vanes until crop material distribution is even across body width.

DF67602,000012C-19-20130617
