Discharge Beater Wear Strips—Replacing (Rice Configuration)

CAUTION: Shut OFF engine, set parking brake and remove key.

Discharge beater wings and discharge beater wear strips can be replaced without removing the beater. Replace discharge beater wings in sets of two and opposite of each other to maintain proper balance.

H81772-UN-28SEP04

H79440-UN-15DEC03

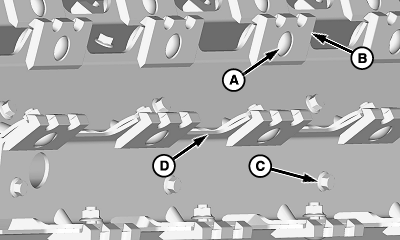

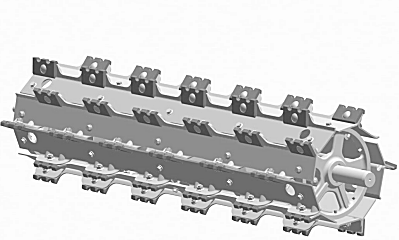

Discharge Beater Wings and Wear Strips (Rice Configuration)

A - Round Head Bolts

B - Discharge Beater Wear Strip

C - Cap Screws

D - Discharge Beater Wings

NOTE: If beater is removed from machine, or has been serviced, tighten clamp bolts before securing wings. Tighten cap screws to specification.

Remove round head bolts (A) and replace discharge beater wear strips (B) as required. Tighten round head bolts to specification.

Item	Measurement	Specification
Discharge Beater Wear Strip Round Head Bolts	Torque	90 N·m (66 lb·ft)

Remove cap screws (C) and replace discharge beater wings (D) as required. Tighten cap screws to specification.

Item	Measurement	Specification
Discharge Beater Wing Cap Screws	Torque	70 N·m (52 lb·ft)
