Every 1000 Hours (ProDrive™ Machines)

1.

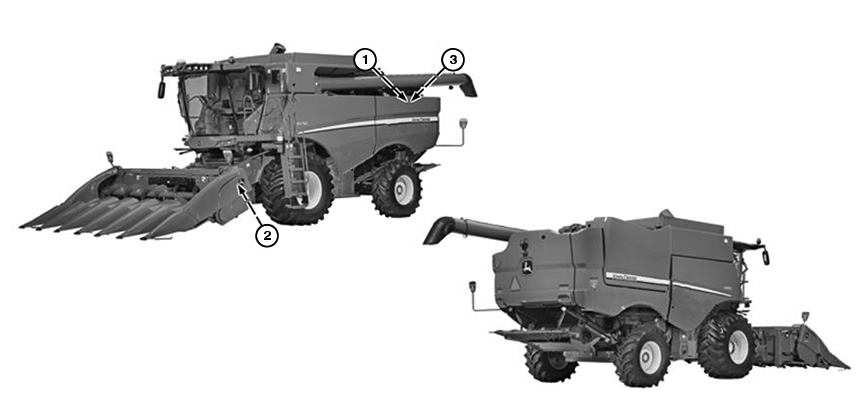

   BML006252-UN-31JUL20


   BML006253-UN-31JUL20


   BML006254-UN-31JUL20

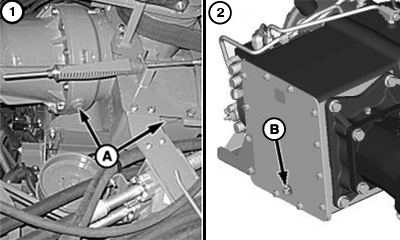

   A - Plugs

   B - Plug

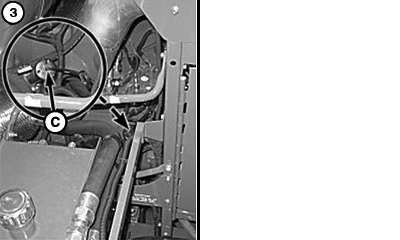

   C - Dipstick

   Main Engine Gear Case Oil - Drain oil at plugs (A).

---




2. Change the Transmission Oil - Drain oil at plug (B).

3. NOTE: Overfilling main engine gear case may cause oil to force dipstick tube out when machine is running.

   Fill Main Engine Gear Case

   1. Fill until oil is at the bottom line on dipstick (C).
   2. Install dipstick (C) and run engine for one minute minimum.
   3. Shut OFF engine and let machine sit for five minutes allowing air to settle from oil.
   4. Remove dipstick (C) and check oil level. Add oil until oil level is at the top line on dipstick (C).
   5. Repeat procedures until oil level remains at the top line on dipstick (C).
