Mechanical Transmission, Final Drives and Feeder House Reverser

CQ290115-UN-26AUG13

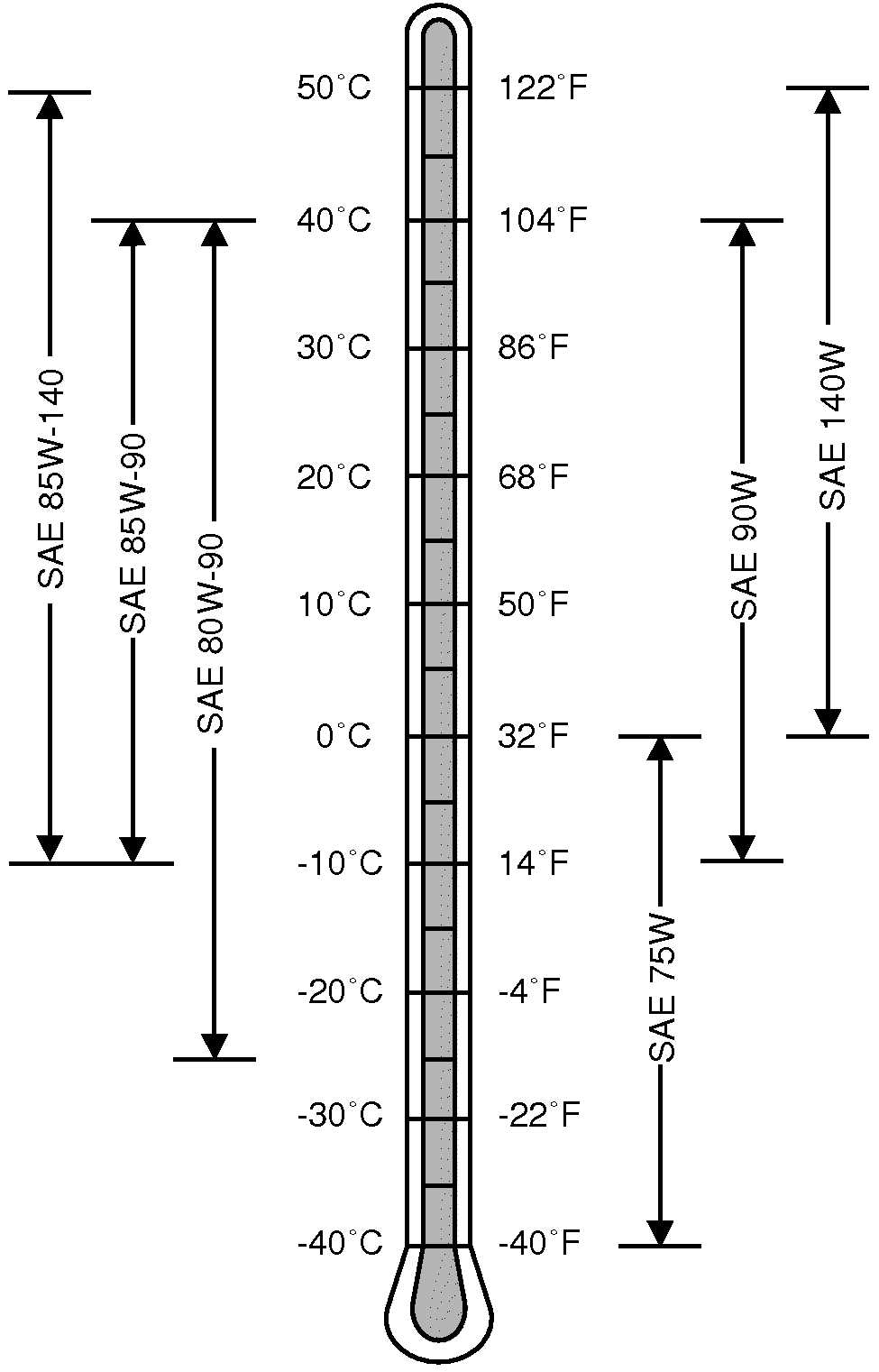

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

• John Deere GL-5 GEAR LUBRICANT

Other oils may be used if they meet API Service Classification GL-5.

Description	Size
80W/90 GL5 Gear Lube	16 kg pail (35 lb. pail)
80W/90 GL5 Gear Lube	0.9 L can (1 qt. can)
85W/90 Gear Lube	20 L
85W/140 GL5 Gear Lube	16 kg pail (35 lb. pail)
85W/140 GL5 Gear Lube	0.9 L can (1 qt. can)
