CommandARM™ Controls

NOTE:

BM000396-UN-07AUG15

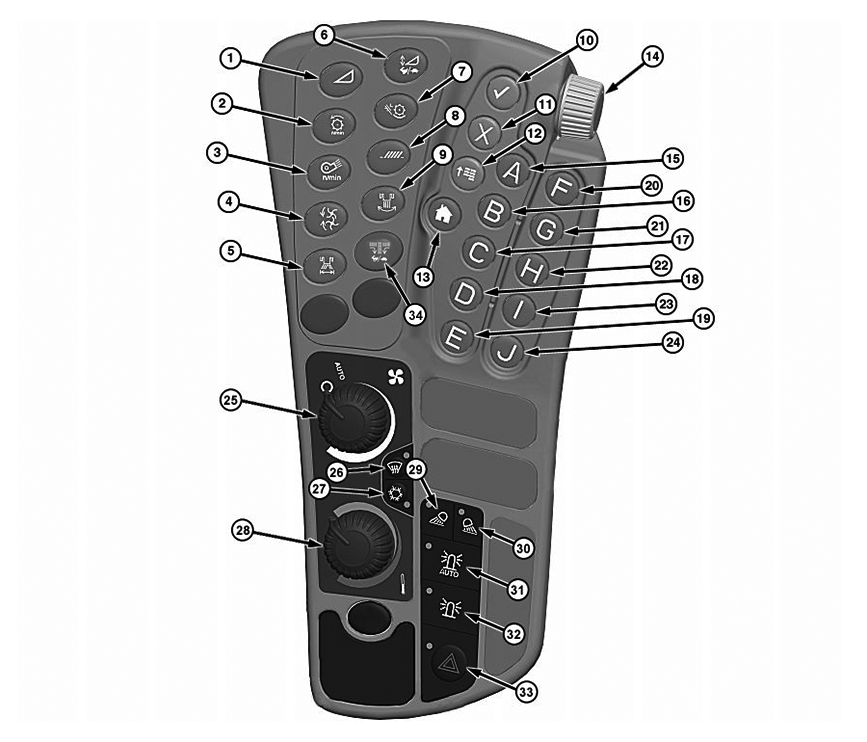

1 - Header Adjustment Switch

2 - Threshing Speed Adjust Switch

3 - Cleaning Fan Speed Adjust Switch

4 - Spreader Speed Adjust Switch

5 - Discharge Swap Switch (If Equipped)

6 - Feeder House Rate/Sensitivity Adjust Switch

7 - Threshing Clearance Adjust Switch

8 - Chaffer/Sieve Adjust Switch

9 - Chopper Vane Angle Adjust Switch (If Equipped)

10 - Confirm Switch

11 - Cancel Switch

12 - Main Menu Switch

13 - Home Switch

14 - Selection Dial

15 — 24 - A—J Shortcut Switches

25 - Fan Speed Control Dial

26 - Defrost Switch

27 - Air Conditioner Switch

28 - Temperature Control Dial

29 - Work Lights 1 (Front Stubble) Switch

30 - Work Lights 2 (Rear Discharge) Switch

31 - Auto Beacon Lights Switch

32 - Beacon Lights Switch

33 - Hazard Warning Lights Switch

34 - Side Belt Speed Reduction Switch

Before operating machine, become familiar with switches and controls.
