Feeder House Doors
CAUTION:

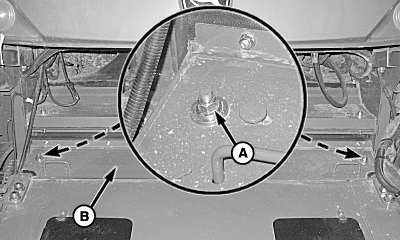

H100486-UN-28FEB11

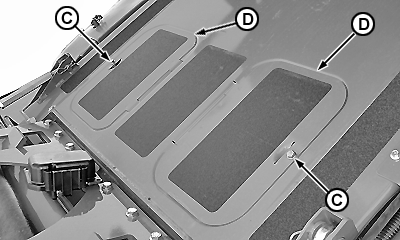

CQ290337-UN-03JUL14
A - Nuts
B - Door
C - Cap Screws
D - Doors
Shut OFF engine, set parking brake and remove key.Loosen nuts (A) on each side of the door and push nuts towards center of feeder house.
Pull door (B) forward to remove.
Remove cap screws (C) and lift doors (D) to access inside of feeder house.
|
