Right-Hand Side Shields

CAUTION:

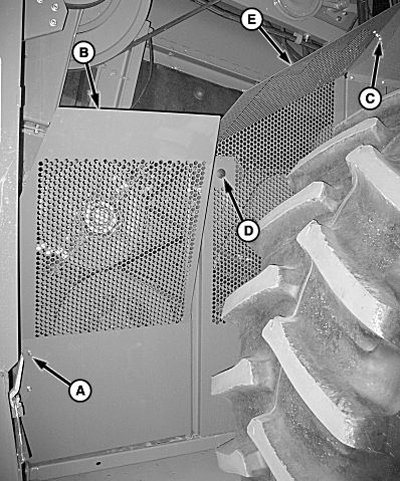

CQ290341
CQ290341-UN-03JUL14

A - Cap Screw and Nut

B - Shield

C - Cap Screw and Nut

D - Latch

E - Shield

Shut OFF engine, set parking brake and remove key.

Rear Shield and Middle Fan Shield— Remove cap screw and nut (A) and open shield (B) to service belts.

Remove cap screw and nut (C) and turn latch (D) to unlock.

Lift and remove rear shield (B) and middle fan shield (E).

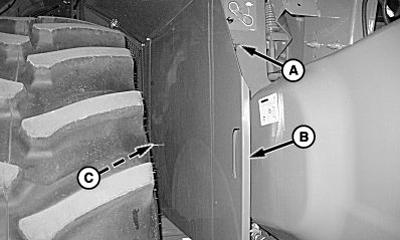

CQ290342
CQ290342-UN-03JUL14

A - Cap Screw

B - Shield

C - Cap Screw

Front Separator Shield— Remove cap screw (A) and pull shield (B) forward.

Remove cap screw (C) and remove shield.

DF67602,00002CE-19-20140703
