Header Setup Screen


Header Settings (Corn Head):

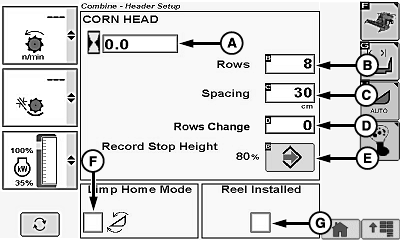

H109840
H109840-UN-18FEB14

  • Corn Head and Hour Counter1 (A)
    • Header Type (Auto Detection)
    • Total Rows (Rows, Based on Type, Numeric Entry) (B)
    • Row Spacing (C)
    • Row Change (Decrease Cut Rows) 2 (D)
    • Record Stop Height (Height Setup for Turning Recording ON/OFF) (E)
    • Limp Home Mode3 4 (F)
    • Reel Installed Box (G)

Header Settings (Draper/Platform/Belt Pickup):

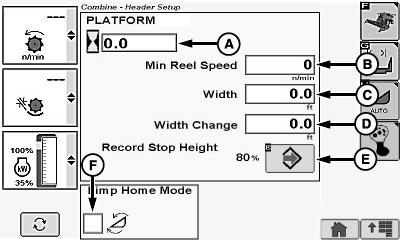

H109841
H109841-UN-18FEB14

  • Draper/Platform/Belt Pickup and Hour Counter1 (A)
    • Header Type (Auto Detection)
    • Minimum Reel or Belt Pickup Speed (B)
    • Total Width (Total Width, Based on Type, Numeric Entry) (C)
    • Width Change (Decrease Cut Width) 2 (D)
    • Record Stop Height (Height Setup for Turning Recording ON/OFF) (E)
    • Limp Home Mode3 4 (F)

Automatic Header Control (AHC) Settings:

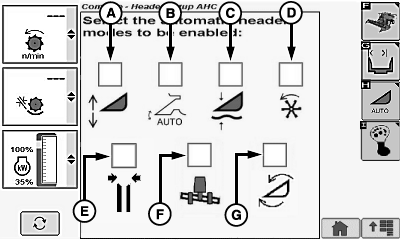

H109791
H109791-UN-12FEB14

Corn Head Display

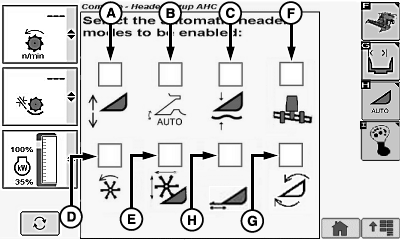

H109792
H109792-UN-12FEB14

Platform Display

NOTE: Icons will vary depending on machine options and header types.

    Corn Head

  • Header Height Sensing Enable (A)
  • Header Height Resume Enable (B)
  • Active Header Float Enable (C)
  • Dial-A-Speed™ Enable5 (D)
  • Deck Plate Position Resume Enable6 (E)
  • Lateral Tilt Enable7 (F)
  • Hydraulic Feeder House Fore/Aft Tilt Enable3 (G)

    Draper/Platform/Belt Pickup/Extendable Platform

  • Header Height Sensing Enable (A)
  • Header Height Resume Enable (B)
  • Active Header Float Enable (C)
  • Dial-A-Speed™ Enable (D)
  • Reel Position Resume Enable8 (E)
  • Lateral Tilt Enable7 (F)
  • Hydraulic Feeder House Fore/Aft Tilt Enable3 (G)
  • Not Used (H)

Multi-function Lever Setup:

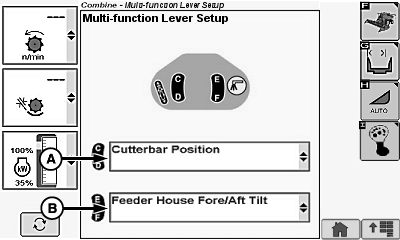

H109752
H109752-UN-28FEB14

NOTE: Depending on machine options and header types, switches on rear of multi-function lever are programmable to control:

  • Hydraulic Feeder House Fore/Aft Tilt (If Equipped)

Switches (C and D) by default are assigned: Switches (E and F) by default are assigned:

  • Hydraulic Feeder House Fore/Aft Tilt (If Equipped)

  • Switch Menu (A and B)
    • Hydraulic Feeder House Fore/Aft Tilt (If Equipped)

Dial-A-Speed is a trademark of Deere & Company
1 For information on resetting header hours, see your John Deere dealer.
2 Appears on GreenStar display (if equipped) instead of on armrest display.
3 If equipped with Hydraulic Feeder House Fore/Aft Tilt.
4 Limp home mode only appears if a sensor fails or fault code exists.
5 If connected to a corn head with a reel.
6 If connected to a corn head with adjustable deck plates.
7 If equipped with Lateral Tilt.
8 If connected to a platform machine with a reel.

DF67602,00002DB-19-20141107
