Left-Hand Side Shields
S660 and S670
CAUTION:
H105327-UN-01MAY12

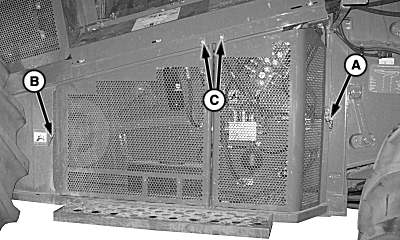

A - Cap Screw and Nut
B - Cap Screw and Nut
C - Cap Screws
Shut OFF engine, set parking brake and remove key.Side Shields— Remove cap screw and nut (A and B) to open shields.
Remove cap screws (C) and lift shields to remove.
S680 and S690
CAUTION:
CQ290347-UN-09JUL14

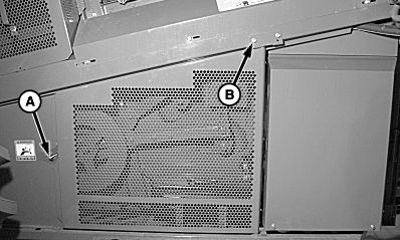

A - Cap Screw and Nut
B - Cap Screws
Shut OFF engine, set parking brake and remove key.Side Shields— Remove cap screw and nut (A) to open shield.
Remove cap screws (B) and lift shield to remove.
CQ290340-UN-03JUL14

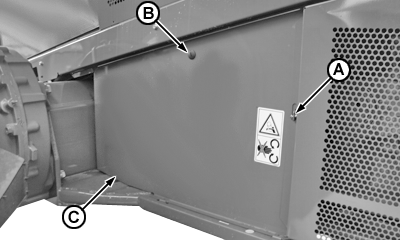

A - Cap Screw and Nut
B - Latch
C - Shield
Fan Shield— Remove cap screw and nut (A) and turn latch (B) to remove shield (C).
CQ290343-UN-03JUL14

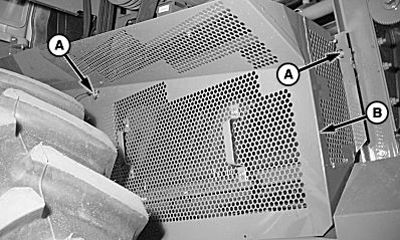

A - Cap Screw and Nut
B - Shield
Upper Separator Shield— Remove cap screw and nut (A) and remove shield (B).
CQ290343-UN-03JUL14
H96805-UN-09JUN10
A - Cap Screw and Nut
B - Shield

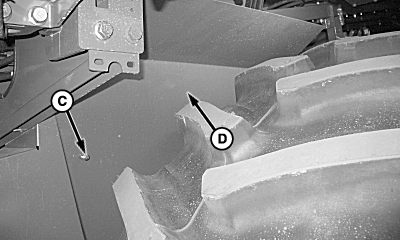

C - Cap Screw
D - Shield
Front Separator Shield— Remove cap screw and nut (A) and remove shield (B).Remove cap screw (C) and push front separator shield (D) rearward to remove.
|
