Battery Disconnect Switch

NOTE:

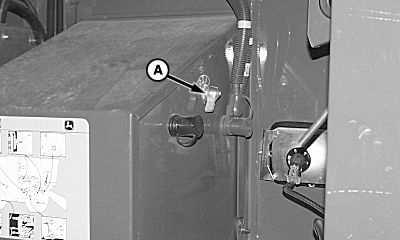

H83428
H83428-UN-01JUN05

S660 and S670

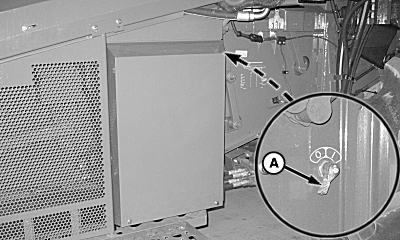

H96585
H96585-UN-30JUN10

S680 S690

A - Battery Switch

Turn battery disconnect switch OFF if machine is stored longer than 25 days. If storage period is longer than 90 days, remove negative lead to batteries to minimize load to batteries.

Turn battery disconnect switch (A) clockwise to turn ON machine electrical system or turn handle counterclockwise to turn OFF machine electrical system.

DF67602,00003A2-19-20141113
