Fuse Center Cover

NOTE:

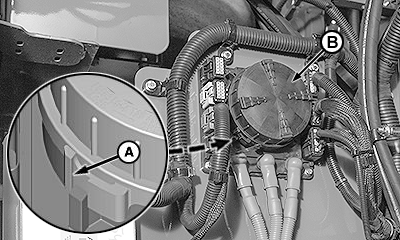

CQ298710
CQ298710-UN-25FEB14

S660 and S670

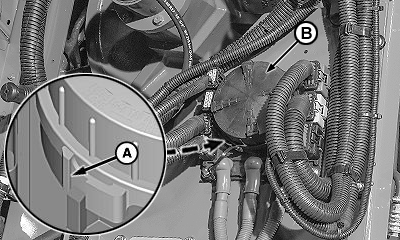

CQ298711
CQ298711-UN-25FEB14

S680 and S690

In S660 and S670 combines the fuse center is located on right-hand side of machine.

In S680 and S690 combines the fuse center is located on left-hand side of machine.

Spare fuses and fuse puller are located underneath cover.

Press lock tab (A) and turn cover (B) counterclockwise to open fuse center.

DF67602,00003A3-19-20141113
