Engine Oil Level

IMPORTANT:

H95375
H95375-UN-16FEB10

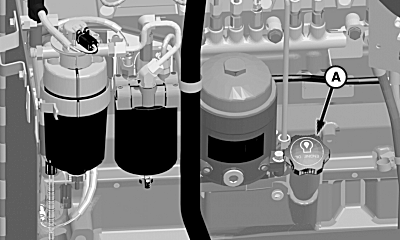

S660 and S670

H95419
H95419-UN-19FEB10

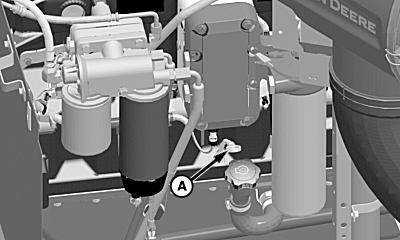

S680 and S690

H86717
H86717-UN-19OCT06

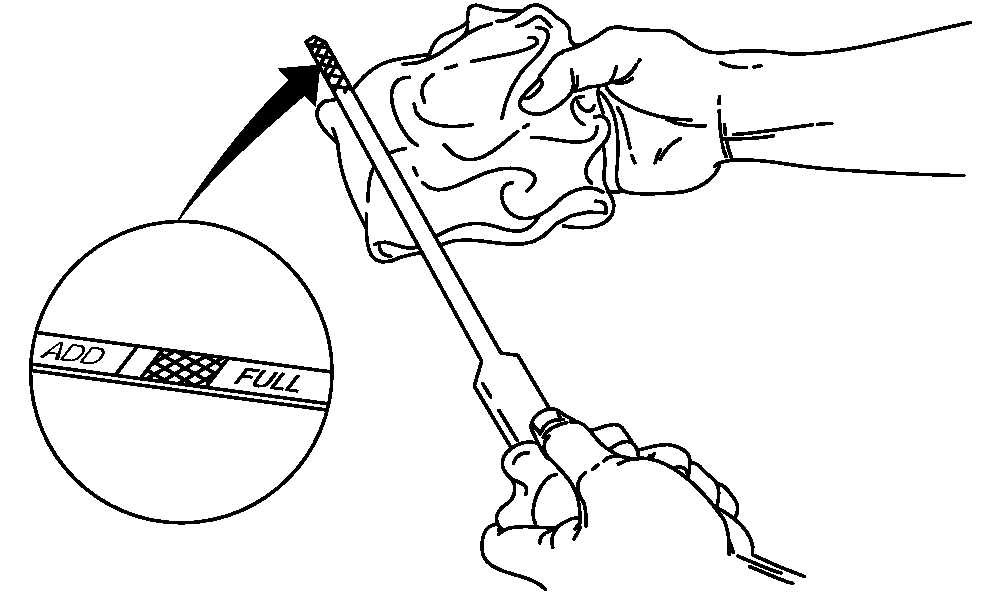

A - Dipstick

It is vital to maintain engine oil at correct levels to ensure a long service life. Check oil level with machine parked on level ground.

NOTE: Verify that dipstick is screwed or pushed completely into housing before removing to check oil level.

Check engine oil level with dipstick (A) daily. Do not operate engine when oil level is below ”ADD” mark on dipstick.

Remove dipstick and check oil level. Oil level should be between ”ADD” and top of cross-hatch area on dipstick. If oil level is below ”ADD” mark, add oil as needed, (see Fuel And Lubricants for oil recommendations).

Watch for leaks. Do not operate engine with oil level below ”ADD” mark.

DF67602,00003B0-19-20141114
