Water Separator Primary Fuel Filter—Draining

CAUTION:

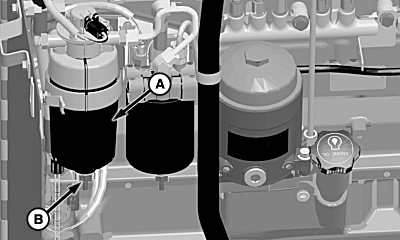

H95380
H95380-UN-16FEB10

S660 and S670

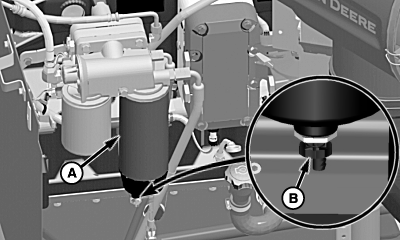

H95425
H95425-UN-19FEB10

S680 and S690

A - Primary Fuel Filter

B - Drain

Shut OFF engine, set parking brake and remove key before performing maintenance work.

When primary fuel filter (A) senses water in fuel system a diagnostic trouble code is generated.

If a diagnostic trouble code appears, drain primary filter using drain (B) and reset code.

DF67602,00003B1-19-20141114
