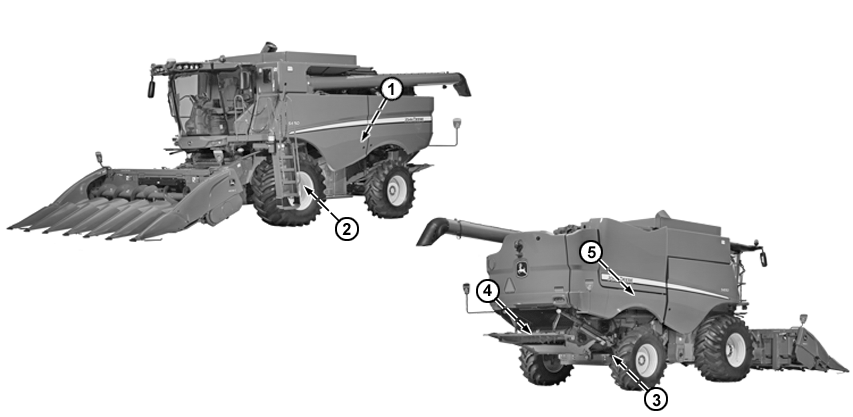

Every 400 Hours

  1. CQ290064
    CQ290064-UN-25FEB14

    H97684
    H97684-UN-25AUG10

    H97661
    H97661-UN-18AUG10

    H97663
    H97663-UN-18AUG10

    A - Plug

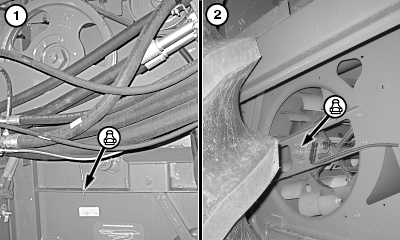

    Discharge Beater Bearing - Grease fitting (both sides).


  2. Cleaning Fan Shaft Bearings - Grease fitting (both sides).

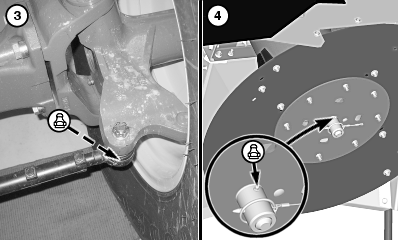

  3. Rear Axle Tie Rod - Grease fitting (both sides) on power steering rod end ball joint.

  4. Spreader Disk (If Equipped) - Grease fitting (both sides) to prevent hubs from corroding to shafts.

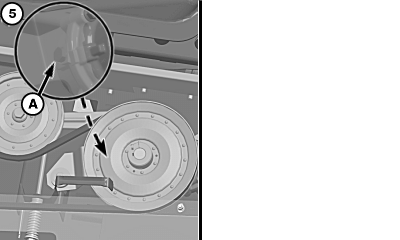

  5. S670, S680 and S690 Machines: Overshot Beater Gearcase Oil (Optional) - Remove plug (A) and check oil level. Add oil as needed.

DF67602,00003C3-19-20141125
