ProDrive Mode 1 and 2 Switches (ProDrive Machines) (If Equipped)

NOTE:

CQ298692-UN-25FEB14

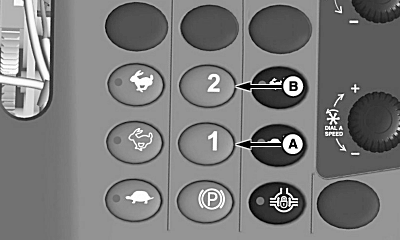

A - ProDrive Mode 1 Switch

B - ProDrive Mode 2 Switch

Maximum reverse ground speed is 10 km/h (6.2 mph) and does not change when in either mode.

ProDrive mode 1 or 2 switches can be selected while machine is moving.

ProDrive mode 1 switch (A) and ProDrive mode 2 switch (B) are used to control transmission ground speed electronically. Switches are used to set a comfortable harvest or transport speed. When desired ground speed is set and multi-function lever is moved fully forward, machine operates no faster than the setpoint for the selected mode.

1. Press ProDrive mode 1 or 2 switch. Indicator lights on cornerpost display indicate which mode is currently selected.

2. Touch plus symbol (+) or minus symbol (-) or rotate selection dial until desired machine speed settings are reached.

3.
   H101553-UN-16MAY11


   H101554-UN-16MAY11


   H101555-UN-16MAY11

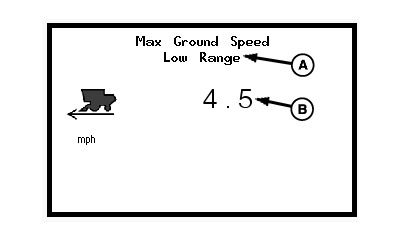

   A - Max Ground Speed Low Range

   B - Current Setpoint Speed

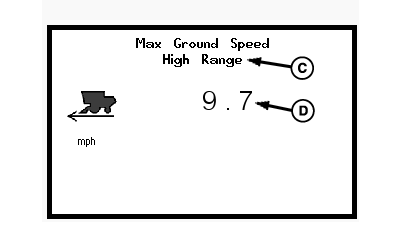

   C - Max Ground Speed High Range

   D - Current Setpoint Speed

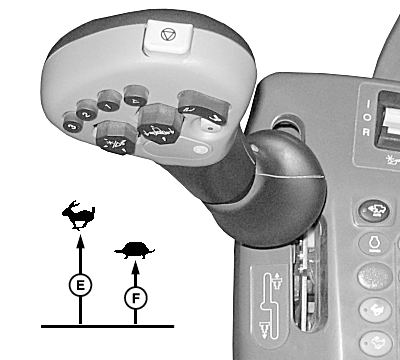

   E - Higher Acceleration Range

   F - Lower Acceleration Range

   CommandCenter display shows operator adjustment settings for:

   NOTE: Mode 1 maximum speed cannot be set higher than current maximum speed set in mode 2.

   Machine has a speed range of 0—7.2 km/h (0—4.5 mph) or 0—15.6 km/h (0—9.7 mph) as shown and will not operate faster than setpoint speed.

   Speed change occurs between mode 1 and mode 2. (Example: Mode 1 set at 8 km/h (5 mph) with multi-function lever in mid range (4 km/h 2.5 mph). Mode 2 set at 20 km/h (12.4 mph) with multi-function lever in mid range (10 km/h; 6.2 mph). Current ground speed increases between modes).

   Max Ground Speed Low Range (Mode 1):

   • Max Ground Speed Low Range (A) displays when ProDrive mode 1 switch is selected.
     • Display shows current setpoint speed (B).
     • When selection dial is rotated, machine slowly increases or decreases ground speed no matter where multi-function lever is positioned.



   Max Ground Speed High Range (Mode 2):

   • Max Ground Speed High Range (C) displays when ProDrive mode 2 switch is selected.
     • Display shows current setpoint speed (D).
     • When selection dial is rotated, machine slowly increases or decreases ground speed no matter where multi-function lever is positioned.



   NOTE: Greater maximum setpoints mean more aggressive machines movements. It is always best to use low range with a low maximum setpoint when doing precision movements (hooking up header).

   • Example 1: Attaching header to machine and harvesting desired crop. Mode 1 set to 1.6 km/h (1 mph). Mode 2 set to 11.3 km/h (7 mph).
   • Example 2: Waterway approaches and harvesting desired crop. Mode 1 set to 4.8 km/h (3 mph). Mode 2 set to 11.3 km/h (7 mph).



---
