Chopper Drive Belt Tension—Adjusting— Identifications of Type


A—Type Chopper Drive

CQ290524
CQ290524-UN-15DEC14

Shifter Handle and Two Belts

1 - Shifter handle

2 - Two belts

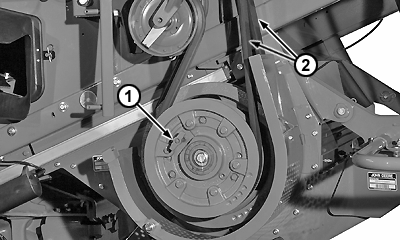

A—Type chopper drive has shifter handle (1) and sheaves with two belts (2).


B—Type Chopper Drive

CQ290525
CQ290525-UN-15DEC14

Dual Sheave with one Belt

1 - Dual sheave

2 - One belt

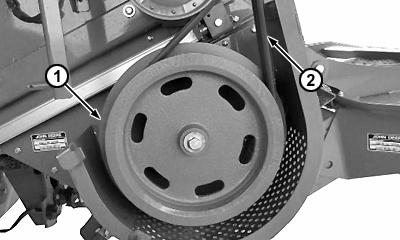

B—Type chopper drive has a dual sheave (1) with one belt (2).
