Access to Grain Tank and Engine Compartment—Tool Opening

CAUTION: Shut off engine, set park brake and remove key.

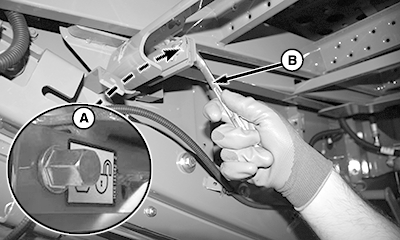

  1. Turn the screw (A) clockwise until the door opens.

    BM036536
    BM036536-UN-12MAR19

    BM036537
    BM036537-UN-12MAR19

    A - Screw

    B - Suitable Tool

    C - Handle

    IMPORTANT: Use a suitable tool (B) to open the door.

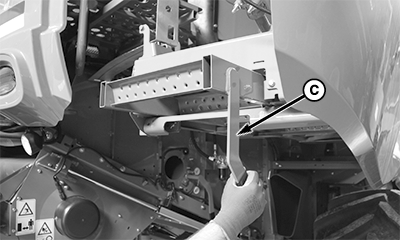

  2. Use the handle (C) to pull the ladder rearward.

    CAUTION: Avoid accidents with the chopper and the rear ladder. When leaving the engine platform, use the handle (C) to pull the ladder back to transport position and push the door to close it. Only start the chopper/engine with the rear ladder and the door in transport position.

ER40675,0000E96-19-20191212
