Rotational Alarm System

BM031468
BM031468-UN-13MAR19

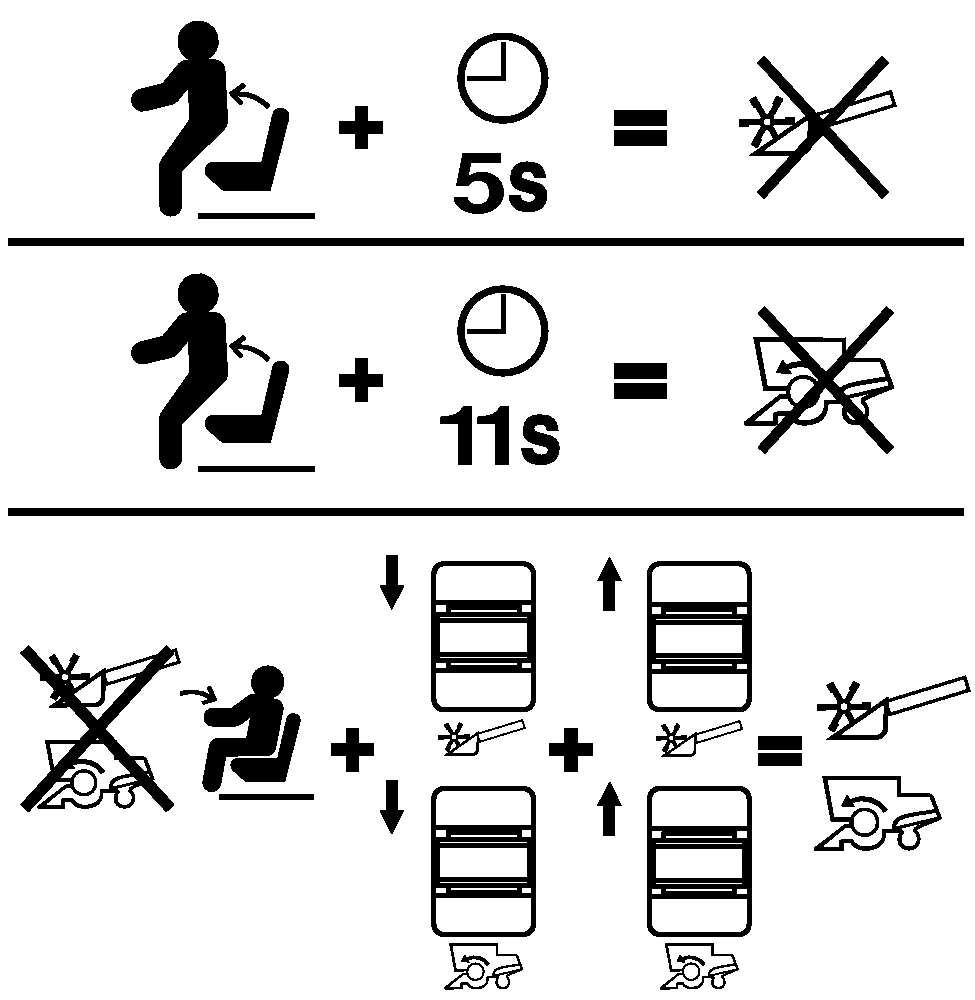

If operator leaves seat with header and/or separator engaged, lights flash and an alarm sounds. If operator continues to be out of the seat, harvesting functions stop.

If harvesting functions are stopped, they need to be restarted before continuing to harvest.

To restart harvesting functions, operator must be in seated position to disengage/restart and engage separator and header switches on the armrest console.

LR35023,00001E4-19-20190313
