Accumulator

NOTE:

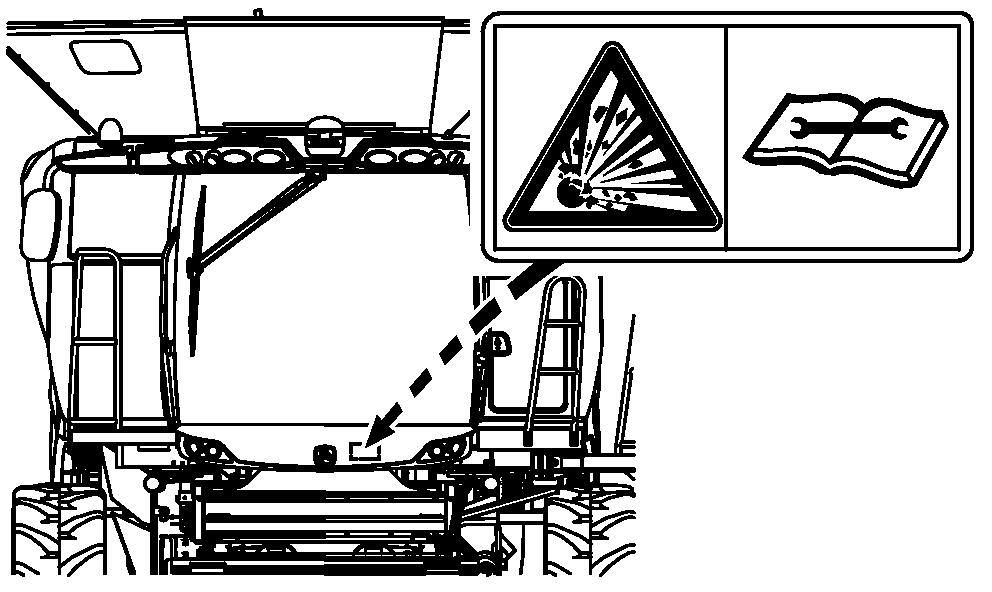

H105072
H105072-UN-23MAR12

H97866
H97866-UN-03SEP10

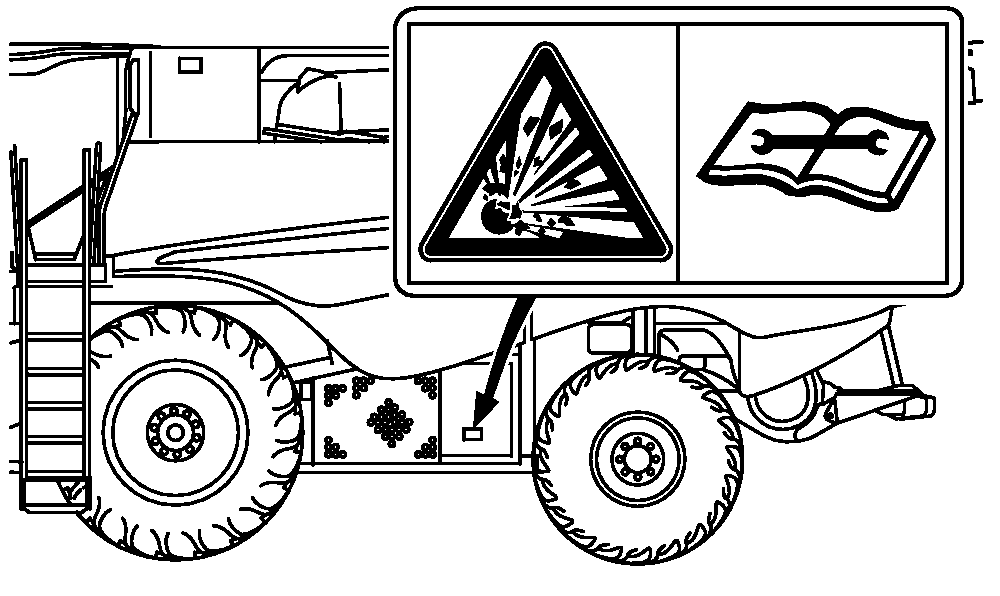

H96902
H96902-UN-04AUG10

S760 and S770

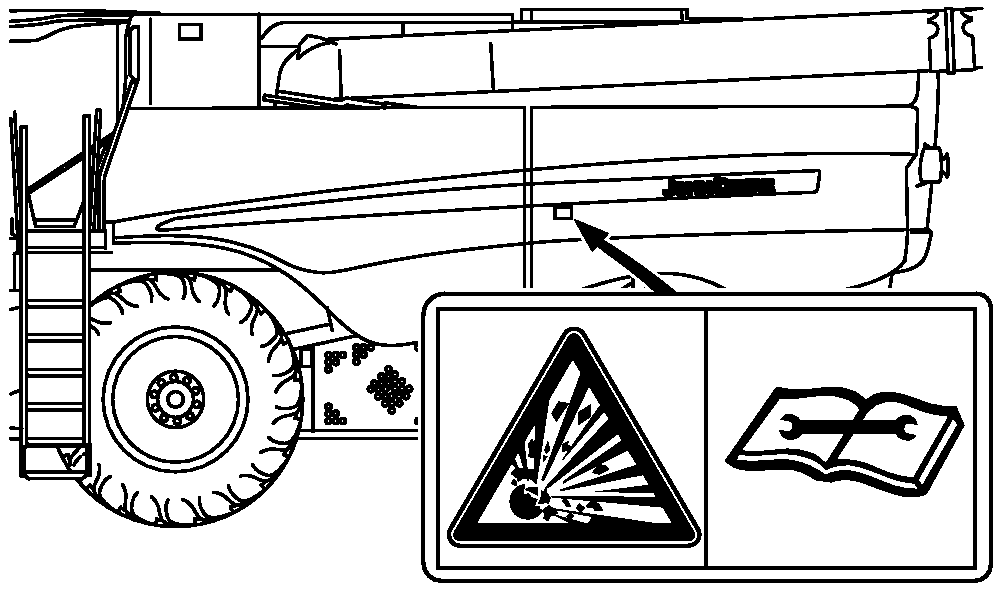

H97862
H97862-UN-02SEP10

S780 and S790

Decals located on cab support and on stone trap door and are only on ProDrive™ transmission machines.

To prevent the risk of injury as well as possible damage to the accumulator or hydraulic system, maintain recommended nitrogen gas pressure.

Charge only with dry nitrogen. Rated working pressure is 21 500 kPa (215 bar) (3120 psi), see your John Deere dealer.

ProDrive is a trademark of Deere & Company

LR35023,00001E8-19-20200518
