Emergency Exit

H121321-UN-21APR17

CAUTION: Cover eyes, face and uncovered skin from jagged or broken glass when using the break glass hammer.

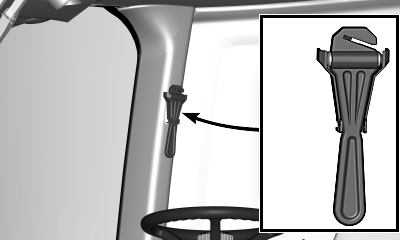

In an emergency, always try to exit through the entrance door first. If it is not possible, a break glass hammer (A) is available in the cab and can be used to creat an exit.

Release the break glass hammer (A) from the slot and use it to cut the seat belt and break the glass, as necessary.
