Feeder House Conveyor Chain Links—Removing

NOTE: When replacing chain links always check sprockets for wear.

1.

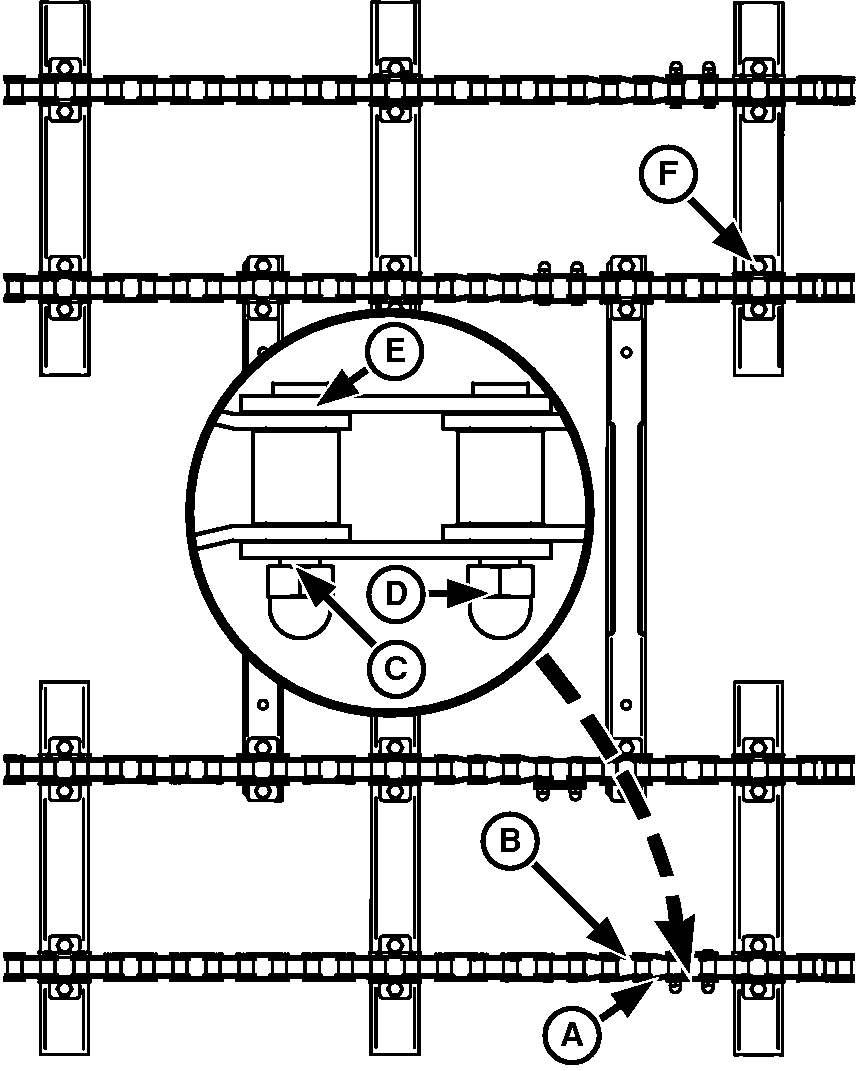

   BM023148-UN-14MAR19

   Remove offset links (A) for initial chain adjustment.

---




2. When installing connector links, outer cap nuts must be oriented away from drum rings.

3. Remove offset links (B) for second adjustment. When adjustment is used up from second adjustment, chain is worn out and must be replaced.

   IMPORTANT: When chain link nuts (D) are tightened to specification, gap (E) should exist between the connector link sidebar (C) and cap nut.

4. Tighten the screws (F) and nuts (D) according to the specification, and observe the specified gap (E):

   Item	Measurement	Specification
   Chain Link Cap Nuts (D)	Torque	25 N·m (18 lb·ft)
   Gap (E)	Gap	1-2 mm (3/64 in—5/64 in)
   Slat Screws (F)	Torque	73 N·m (54 lb·ft)
