Unloading Auger Lock Arm Positions
CAUTION: Shut OFF engine, set park brake and remove key.

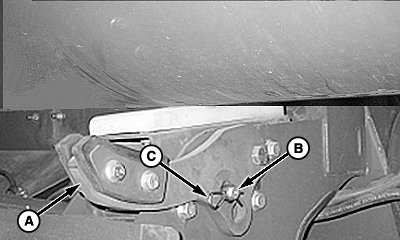

Field Position
H106300-UN-10DEC12
Field Position
Lower lock arm (A) as shown and install pin (B) and retain with spring pin (C).Storage/Transport Position
H106292-UN-10DEC12

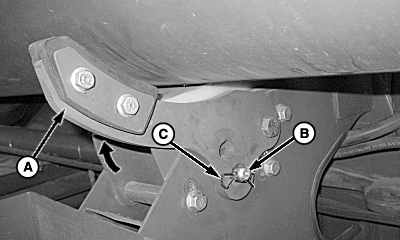

Storage Position/Transport Position
Raise lock arm (A) as shown and install pin (B) and retain with spring pin (C).|
