Machine Safety Features

BM031467
BM031467-UN-18MAR19

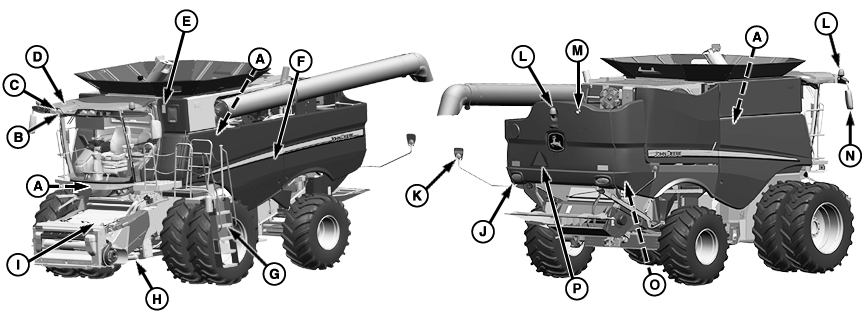

A - Rotational Alarm Safety Features: Discharge Light, Stubble Lights, Gullwing Service Lights

B - Handholds

C - Headlights

D - Cab Safety Features: Operator's Presence System, Electronic Engine Start Lockout, Seat Belts, Horn, Emergency Exit Window, Park Brake, Turn Signals

E - Safety Signs

F - Shields

G - Slip Resistant Steps and Platform with Handrails

H - Mechanical Safety Stop (Feeder House)

I - Slip Resistant Skid Mats

J - Tail Lights

K - Warning Lights and Reflective Tape

L - Beacon Lights

M - Backup Alarm

N - Rear View Mirror

O - Slip Resistant Skid Mats

P - Slow-Moving Vehicle Emblem

In addition to the safety features shown here, other components and systems, safety lights on the machine, and safety messages and instructions in the operator's manual contribute to the safe operation of this machine when combined with the care and concern of a capable operator.

LR35023,00003F8-19-20190314
