Threshing Tines, Spike Teeth and Separator Tines—Remove and Install

1. IMPORTANT: Rotor is a balanced assembly. Elements and tines must be replaced in sets of three to maintain balance. Replacement kits are available through service parts and include new cap screws with pre-applied Threadlock and Sealer. Tines or elements that become loose may result in machine damage.

   If tines or elements need to be removed for other than replacement, mark location on tine(s)/element(s) and rotor, prior to removal. Install in same location as removed to maintain balance. Always use new cap screws.

   Make sure to clean out tailings and front cross auger if tine replacement is due to broken or damage tines. Failure to do so before initial start-up may allow broken tines to recirculate and cause tine damage to reoccur.

   NOTE: The concave leveling procedure and zeroing is necessary each threshing elements change or when removed and installed the concave. (See Concave Leveling section.)

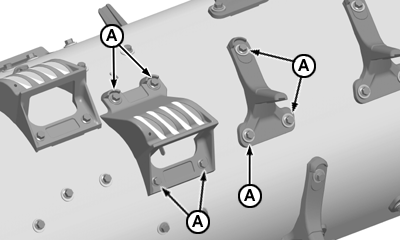

   CQ289761-UN-11JUL12

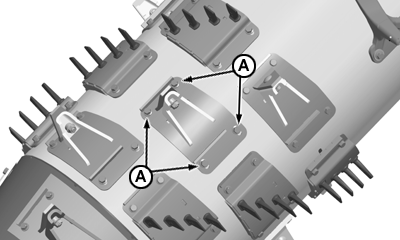

   CQ289760-UN-11JUL12

   A - Cap Screw

   Remove separator grates or concave sections as needed to access rotor. (See Concave Sections—Remove and Install.)

---




2. Inspect wear on threshing elements and separator tines.

3. Remove cap screws and threshing element or tine.

4.

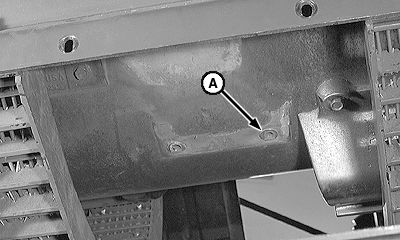

   H54006-UN-18FEB99

   A - Threaded Insert

   Inspect RIVNUT® threaded inserts (A). Replace if damaged.

---




5. If one element or tine needs replaced, replace all in the group. Example: If element 2 needs to be replaced, replace elements 1 and 3 also.

6. Use Threshing Elements and Separator Tine Location diagram for identifying elements and tines.

   Threshing Element Groups (Standard Rotor Configuration)	Separator Tine Groups (Standard Rotor Configuration)
   Group 1 Elements = 1, 2, 3	Group 1 Tines = 1, 4, 5
   Group 2 Elements = 4, 5, 6	Group 2 Tines = 2, 3, 6
   Group 3 Elements = 7, 8, 9	Group 3 Tines = 8, 9, 11
   Group 4 Elements = 10, 11, 12	Group 4 Tines = 7, 10, 12
   Group 5 Elements = 13, 14, 15	Group 5 Tines = 13, 16, 18
   	Group 6 Tines = 14, 15, 17
   	Group 7 Tines = 19, 22, 23
   	Group 8 Tines = 20, 21, 24
   Threshing Element Mix Groups (Rice Rotor Configuration)	Separator Tine Groups (Rice Rotor Configuration)
   Group 1 Threshing Tines = 1, 2, 3	Group 1 Tines = 1, 4, 5
   Group 2 Threshing Tines = 4, 5, 6	Group 2 Tines = 2, 3, 6
   Group 3 Threshing Tines = 7, 9, 11	Group 3 Tines = 8, 9, 11
   Group 4 Spike Teeth = 8, 10, 12	Group 4 Tines = 7, 10, 12
   Group 5 Threshing Tines = 13, 15, 17	Group 5 Tines = 13, 16, 18
   Group 6 Spike Teeth= 14, 16, 18	Group 6 Tines = 14, 15, 17
   Group 7 Threshing Tines = 19, 21, 23	Group 7 Tines = 19, 22, 23
   Group 8 Spike Teeth= 20, 22, 24	Group 8 Tines = 20, 21, 24

7. Tighten cap screws to specification.

   Item	Measurement	Specification
   Threshing Tines, Spike Teeth and Separator Tine Cap Screws	Torque	90 N˙m (66 lb-ft)
