AutoTrac™ Resume Button (If Equipped)

H109727
H109727-UN-29JAN14

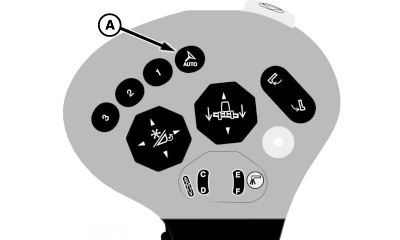

A - AutoTrac™ Resume Button

AutoTrac™ resume button (A) activates or deactivates AutoTrac™ system.

AutoTrac™ resume button also activates or deactivates RowSense™ system. Refer to AutoTrac™ Operator’s Manual for further information.

    System Requirements:

  • Properly equipped header is connected.
  • Engine is running.
  • Road transport disconnect switch must be in field position.
  • Header is engaged.

RowSense is a trademark of Deere & Company

NN32476,0000092-19-20200330
