Unloading Auger Cradle Support (With Lock Arm)—Adjusting

CAUTION: Shut OFF engine, set park brake and remove key.

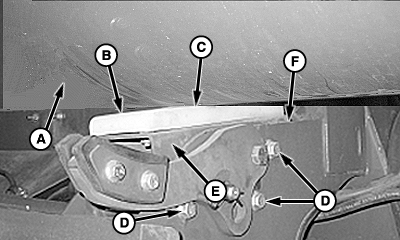

  1. H106291
    H106291-UN-19DEC12

    Swing unloading auger (A) to storage or transport position.


  2. NOTE: No gap should exist between the unloading auger (A) and the wear plate (B) at location (C) when adjusted properly.

    If a gap exists between the unloading auger (A) and the wear plate (B), loosen screws (D) and adjust cradle support (E) vertically until wear plate (B) contacts lower surface of unloading auger (A).

  3. NOTE: Top surface of cradle support (E) MUST be parallel with top of the grain tank plate (F).

    Tighten screws (D) when cradle support (E) is adjusted.

OHMN8Q5,000016D-19-20191108
