Unloading Auger Position (With Lock Arm)—Adjusting

CAUTION: Shut OFF engine, set park brake and remove key.

NOTE: Unloading auger must contact wear plate when adjusted properly.

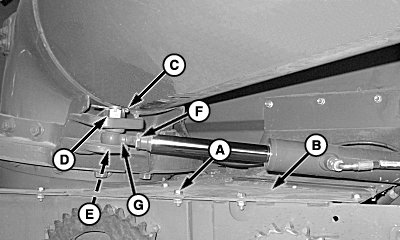

  1. H106293
    H106293-UN-07DEC12

    Remove cotter pin (C), nut, and washer (D) and pin (E).

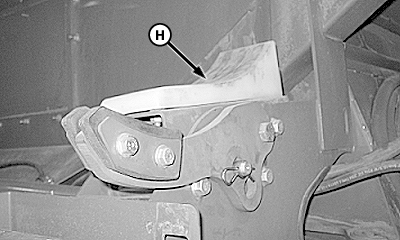

  2. H106322
    H106322-UN-11DEC12

    Loosen nut (F) and adjust eyebolt (G) until unloading auger lightly contacts wear plate surface (H).


  3. Install previously removed hardware and cover after unloading auger is adjusted.
