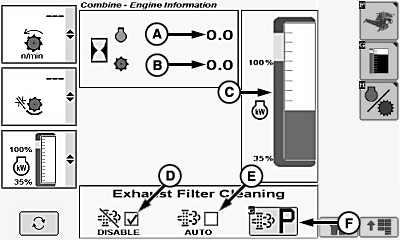

Engine Information Screen

H106327-UN-12DEC12

Engine Settings:

• Engine Hours (A)
• Separator Hours (B)
• Engine Power Meter (C)
  • Green Region (35 to 100%)
  • Yellow Region (101 to 107%)
  • Red Region (108 to 114%)

  IMPORTANT: If indicator moves into red region, engine power is maximized and machine could potentially stall. Reduce load on machine until indicator moves back into green and yellow regions.

• Not used (D)
• Not used (E)
• Not used (F)
