Spreader Speed Adjust Switch

Single Speed Spreader (If Equipped):

NOTE:

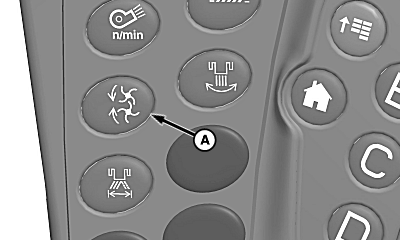

H94671-UN-27JAN10

A - Spreader Speed Adjust Switch

Spreader speed has a range of 0 rpm - 550 rpm. Increase spreader speed until desired spread width is reached.

Spreader speed adjust switch (A) increases or decreases the speed of both spreader disks from inside cab.

1. Press spreader speed adjust switch.

2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease spreader speed.

3. Display shows operator adjustment settings.

NOTE: Set spreader speed to zero when spreader is not being used.

Dual Speed Spreader (If Equipped):

NOTE: Spreader speed can be adjusted with separator disengaged. This allows operator to adjust spreader setpoint speed. When separator is engaged, spreader operates at preset speed.

Spreader speed has a range of 0 rpm - 550 rpm. Increase spreader speed until desired spread width is reached.

Spreader speed adjust switch (A) increases or decreases the speed of both spreader disks together or independently from inside cab.

1. Spreader speed adjust switch:

   • Press switch once to adjust both spreader disk speeds.
   • Press switch twice to adjust left-hand spreader disk speed.
   • Press switch three times to adjust right-hand spreader disk speed.



2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease spreader speed.

3. Display shows operator adjustment settings.

NOTE: Set spreader speed to zero when spreader is not being used.

PowerCast Tailboard Spreader (If Equipped):

NOTE: Spreader speed can be adjusted with separator disengaged. This allows operator to adjust spreader setpoint speed. When separator is engaged, spreader operates at preset speed.

Spreader speed has a range of 0 rpm - 550 rpm. Increase spreader speed until desired spread width is reached.

Spreader speed adjust switch (A) increases or decreases the speed of both spreader disks together or independently from inside cab.

1. Spreader speed adjust switch:

   • Press switch once to adjust both spreader disk speeds.
   • Press switch twice to adjust left-hand spreader disk speed.
   • Press switch three times to adjust right-hand spreader disk speed.



2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease spreader speed.

3. Display shows operator adjustment settings.
