CommandTouch™ Cab Cornerpost

CQ298695
CQ298695-UN-25FEB14

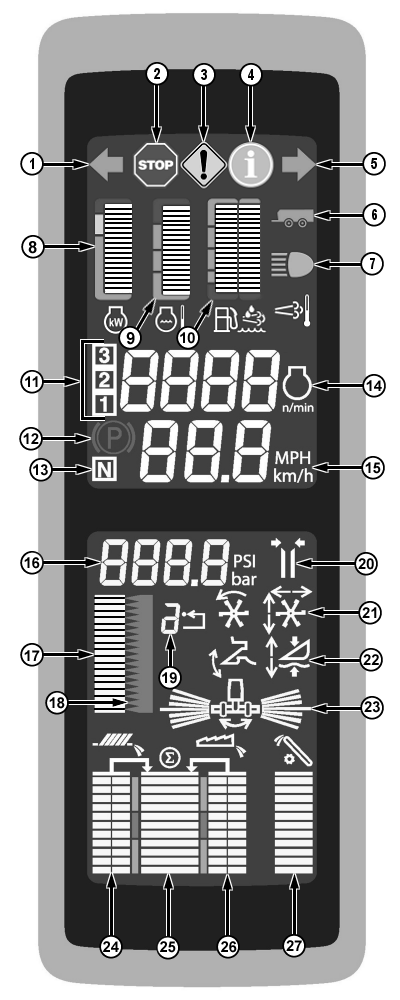

(1)—Left Turn Signal Indicator: shows operator that a left turn is planned.

(2)—Stop Engine Warning Indicator (Red): illuminates and requires machine be stopped at once and problem corrected. Diagnostic trouble code is shown on armrest display until problem is resolved.

(3)—Service Warning Indicator (Yellow): illuminates and flashes when a problem exists with machine. Requires machine be stopped at the earliest convenience. Diagnostic trouble code is shown on armrest display.

(4)—Information Warning Indicator (Gray): illuminates and flashes when diagnostic trouble code is active. Alerts operator to be aware of a condition. When warning is acknowledged, screen message disappears and warning indicator turns OFF.

(5)—Right Turn Signal Indicator: shows operator that a right turn is planned.

(6)—Trailer Lights Indicator: illuminates when trailer harness is hooked up and turn signal is applied.

(7)—High Beam Indicator: shows operator that high beam lights are currently selected.

(8)—Engine Power Meter Indicator: shows operator percentage of power that engine is currently using at any given time.

IMPORTANT: If indicator moves into red region, engine power is maximized and machine could potentially stall. Reduce load on machine until indicator moves back into green and yellow regions.

  • Green Region (35 to 100%)
  • Yellow Region (101 to 107%)
  • Red Region (108 to 114%)

CQ298695
CQ298695-UN-25FEB14

(9)—Engine Temperature Indicator: seven to nine bars are displayed for normal operating temperature.

If alarm sounds and engine temperature message appears, stop engine and check problem immediately.

(10)—Fuel Gauge Indicator: shows how much fuel is left in the tank. When level reaches 10% (approximately one hour of operation) of remaining fuel, fuel indicator flashes, alarm sounds and low fuel message appears.

Indicator shows zero bars when fuel tank is empty.

(11)—Transmission Gear or Range Indicator:

  • 3 Speed Without ProDrive™ Transmission: shows which gear is currently selected. 1, 2, 3 indicators illuminate depending on gear selection.
  • 2 Speed With ProDrive™ Transmission: shows which range is currently selected. 1 and 2 indicators illuminate depending on range selection.

(12)—Park Brake Indicator: illuminates when park brake is selected.

(13)—Neutral Indicator: shows that machine is currently in neutral position.

(14)—Engine Speed Indicator: shows engine rpm speed.

(15)—Ground Speed Indicator: shows machine ground speed (km/h or mph).

CQ298695
CQ298695-UN-25FEB14

(16)—Header Height Numeric Display: shows current header height.

(17)—Header Height Position Display: shows current header height position.

(18)—Header Height Setpoint Display: shows operator desired setpoint.

(19)—Header Activation Number: shows currently selected activation button.

(20)—Deck Plate Position Resume: shows system is currently active.

(21)—Dial-A-Speed/Reel Resume:

  • Dial-A-Speed (Left Icon): shows system is currently active.
  • Reel Resume (Right Icon): shows system is currently active.

(22)—Header Height Resume/Header Height Sensing/Active Header Float:

  • Header Height Resume (Left Icon): shows system is currently active.
  • Header Height Sensing (Right Icon): shows system is currently active.
  • Active Header Float (Right Icon): shows system is currently active.

(23)—Lateral Tilt Display: shows position of feeder house frame.

(24)—Shoe Loss Indicator: shows grain loss from shoe.

(25)—Total Loss Indicator: shows averaged grain loss from shoe and separator area.

(26)—Separator Loss Indicator: shows grain loss from separator area.

(27)—Tailings Volume Indicator: shows volume of tailings return.
