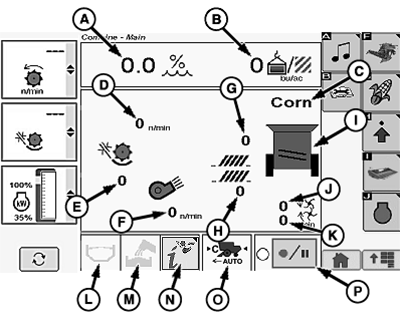

Combine—Main Screen

NOTE:

BM004589-UN-03FEB16

• Moisture (If Equipped) (A)
• Yield (If Equipped) (B)
• Crop (C)
• Machine Settings
  • Threshing Speed (D)
  • Threshing Clearance (E)
  • Fan Speed (F)
  • Chaffer Clearance (G)
  • Sieve Clearance (H)
  • Not used (I)
• Spreader Speed/Chopper Vane Angle Setting 1 (If Equipped) (J)
• Spreader Speed/Chopper Vane Angle Setting 2 (If Equipped) (K)
• Side Belt Speed Reduction and Grain Tank 3/4 or Full Status (L)
• Unloading Auger Out/Engage Status (M)
• Interactive Combine Adjustment Indicator (N)
• Harvest Smart™ Feed Rate Status (OFF, Smart, or Capacity) (If Equipped) (O)
• Manual Recording (ON/OFF) (P)
