Change Header Settings

NOTE:

H96245-UN-03MAY10

Header Setup Icons

H109844-UN-18FEB14

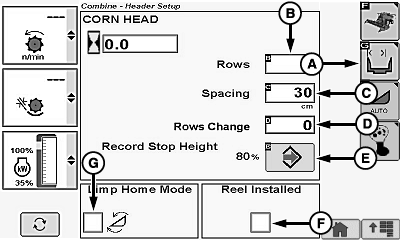

A - Header Width Setup Icon

B - Rows Box

C - Spacing Box

D - Rows Change Box

E - Record Stop Height Enter/Accept Icon

F - Reel Installed Box

G - Limp Home Mode Box

Touch or press confirm switch when header setup icon is highlighted.

Touch or press confirm switch when header width setup icon (A) is highlighted.

Touch or press confirm switch when one of the following is highlighted:

Corn Head Display:

• Rows Box (B) - allows operator to set number of rows on corn head.
• Spacing Box (C) - allows operator to set row spacing on corn head.
• Rows Change Box (D) - allows operator to set row changes (not harvesting full width).

NOTE: Rows change box appears on GreenStar display (if equipped) instead of on armrest display.

Non-Touchscreen or Touchscreen: Rotate selection dial until desired header value is shown. Press confirm switch to save value.

Touchscreen Only: Enter desired header value on numeric display. Touch enter/accept icon to save value.

Recording Stop Height:

NOTE: Recording automatically turns OFF at and above preset height and turns ON below preset height, provided all other conditions are met (separator/header engaged, engine at high idle, farm/field is setup), see Manual Recording ON/OFF in this section for information on temporarily overriding.

If Header Height Sensing or Active Header Float are active, record stop height setting is irrelevant and recording turns ON, provided all other conditions are met (separator/header engaged, engine at high idle, farm/field is setup).

Raise or lower header to desired record stop height.

Touch or press confirm switch when record stop height enter/accept icon (E) is highlighted to save value.

Reel Installed:

Allows operator in down or tangled crop conditions to enable a corn head reel system.

Touch or press confirm switch when reel installed box (F) is highlighted.

Box displays a checkmark indicating it was selected.

Limp Home Mode (Hydraulic Feeder House Fore/Aft Tilt):

NOTE: Only appears if a sensor fails or fault code exists.

Allows operator to manually move hydraulic feeder house fore/aft tilt frame temporarily if a sensor fails or fault code exists.

IMPORTANT: The fore/aft angle cannot be measured due to an active fault on the feeder house fore/aft tilt system. Operator accepts the risk of header collision with the ground.

Touch or press confirm switch when limp home mode box (G) is highlighted.

Box displays a checkmark indicating it was selected.

Folding Corn Head Display:

•
  H96245-UN-03MAY10

  Header Setup Icons


  H113912-UN-08MAY15

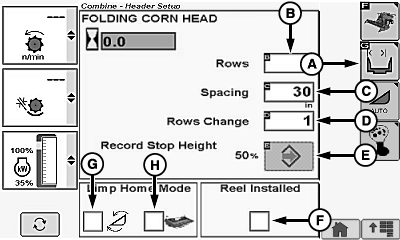

  A - Header Width Setup Icon

  B - Rows Box

  C - Spacing Box

  D - Rows Change Box

  E - Record Stop Height Enter/Accept Icon

  F - Reel Installed Box

  G - Limp Home Mode Box

  H - Limp Home Mode Box

  Rows Box (B) - allows operator to set number of rows on corn head.

---

• Spacing Box (C) - allows operator to set row spacing on corn head.
• Rows Change Box (D) - allows operator to set row changes (not harvesting full width).

NOTE: Rows change box appears on GreenStar display (if equipped) instead of on armrest display.

Non-Touchscreen or Touchscreen: Rotate selection dial until desired header value is shown. Press confirm switch to save value.

Touchscreen Only: Enter desired header value on numeric display. Touch enter/accept icon to save value.

Recording Stop Height:

NOTE: Recording automatically turns OFF at and above preset height and turns ON below preset height, provided all other conditions are met (separator/header engaged, engine at high idle, farm/field is setup), see Manual Recording ON/OFF in this section for information on temporarily overriding.

If Header Height Sensing or Active Header Float are active, record stop height setting is irrelevant and recording turns ON, provided all other conditions are met (separator/header engaged, engine at high idle, farm/field is setup).

Raise or lower header to desired record stop height.

Touch or press confirm switch when record stop height enter/accept icon (E) is highlighted to save value.

Reel Installed:

Allows operator in down or tangled crop conditions to enable a corn head reel system.

Touch or press confirm switch when reel installed box (F) is highlighted.

Box displays a checkmark indicating it was selected.

Limp Home Mode (Hydraulic Feeder House Fore/Aft Tilt):

NOTE: Only appears if a sensor fails or fault code exists.

Allows operator to manually move hydraulic feeder house fore/aft tilt frame temporarily if a sensor fails or fault code exists.

IMPORTANT: The fore/aft angle cannot be measured due to an active fault on the feeder house fore/aft tilt system. Operator accepts the risk of header collision with the ground.

Touch or press confirm switch when limp home mode box (G) is highlighted.

Box displays a checkmark indicating it was selected.

Limp Home Mode (Folding Function)

NOTE: Only appears if a sensor fails or fault code exists.

Allows operator to manually move folding wings temporarily if a sensor fails or fault code exists.

IMPORTANT: The wing position of the corn head cannot be determined. Operating in this condition may result in equipment damage.

Touch or press confirm switch when limp home mode box (H) is highlighted.

Box displays a checkmark indicating it was selected.

Draper/Platform/Belt Pickup Display:

H109845-UN-18FEB14

A - Header Width Setup Icon

B - Minimum Reel or Belt Pickup Speed Box

C - Width Box

D - Width Change Box

E - Record Stop Height Enter/Accept Icon

F - Limp Home Mode Box

Touch or press confirm switch when one of the following is highlighted:

• Minimum Reel or Belt Pickup Speed Box (B) - allows operator to set minimum reel or belt pickup speed.
• Width Box (C) - allows operator to set cut width on platforms.
• Width Change Box (D) - allows operator to set cut width changes (not harvesting full width).

NOTE: Width change box appears on GreenStar display (if equipped) instead of on armrest display.

Non-Touchscreen or Touchscreen: Rotate selection dial until desired header value is shown. Press confirm switch to save value.

Touchscreen Only: Enter desired header value on numeric display. Touch enter/accept icon to save value.

Recording Stop Height:

NOTE: Recording automatically turns OFF at and above preset height and turns ON below preset height, provided all other conditions are met (separator/header engaged, engine at high idle, farm/field is setup), see Manual Recording ON/OFF in this section for information on temporarily overriding.

If Header Height Sensing or Active Header Float are active, record stop height setting is irrelevant and recording turns ON, provided all other conditions are met (separator/header engaged, engine at high idle, farm/field is setup).

Raise or lower header to desired record stop height.

Touch or press confirm switch when record stop height enter/accept icon (E) is highlighted to save value.

Limp Home Mode (Hydraulic Feeder House Fore/Aft Tilt):

NOTE: Only appears if a sensor fails or fault code exists.

Allows operator to manually move hydraulic feeder house fore/aft tilt frame temporarily if a sensor fails or fault code exists.

IMPORTANT: The fore/aft angle cannot be measured due to an active fault on the feeder house fore/aft tilt system. Operator accepts the risk of header collision with the ground.

Touch or press confirm switch when limp home mode box (F) is highlighted.

Box displays a checkmark indicating it was selected.

Cutterbar Setup:

H112848-UN-09FEB15

H109850-UN-13FEB14

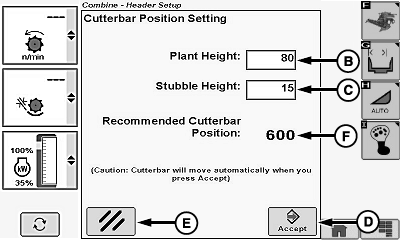

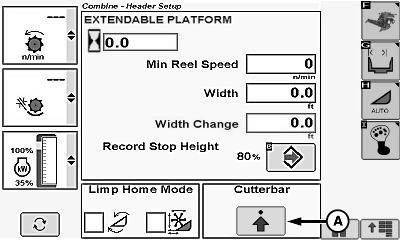

A - Cutterbar Setup Icon

B - Plant Height Box

C - Stubble Height Box

D - Enter/Accept Icon

E - Cancel Icon

F - Recommended Cutterbar Position

Touch or press confirm switch when cutterbar setup icon (A) is highlighted.

Plant Height or Stubble Height:

Touch or press confirm switch when one of the following is highlighted:

• Plant Height Box (B) - allows operator to make adjustments for different plant heights.
• Stubble Height Box (C) - allows operator to make adjustments for desired stubble heights.

Non-Touchscreen or Touchscreen: Rotate selection dial until desired value is shown. Press confirm switch to save value.

Touchscreen Only: Touch or press confirm switch when plus (+) icon or minus (-) icon is highlighted until desired value is shown.

Touch or press confirm switch when enter/accept icon (D) is highlighted to save value.

NOTE: Touch or press confirm switch when cancel icon (E) is highlighted to cancel values. Previous machine values will be retained.

Recommended Cutterbar Position:

Recommended cutterbar position (F) is setpoint value that is displayed to operator using plant height values and stubble height values which were chosen by operator.
