Armrest Console Controls

NOTE:

BM004591-UN-03FEB16

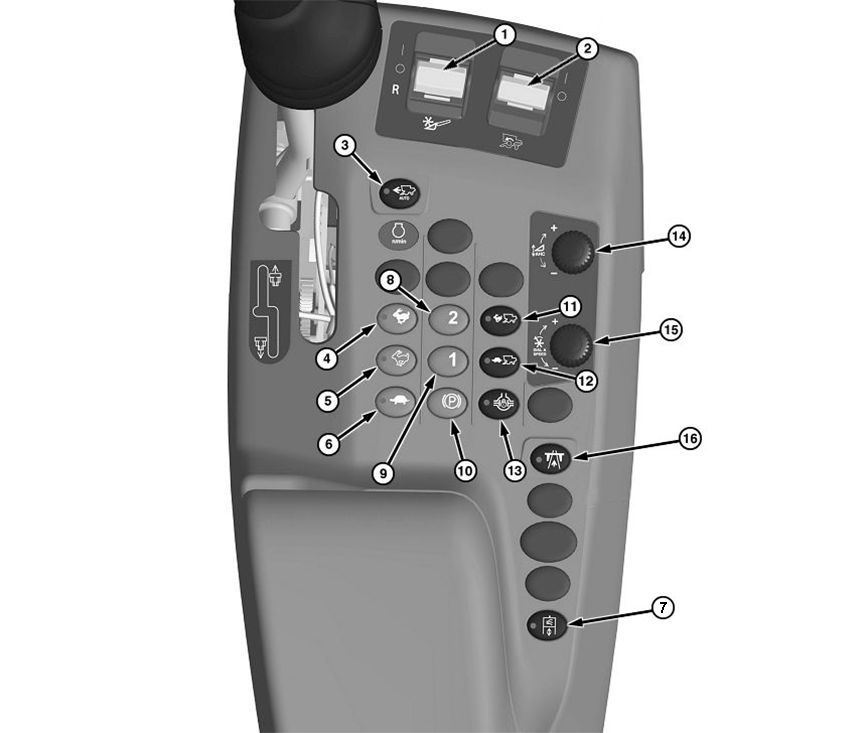

1 - Header Engage and Feeder House Reverser Switch

2 - Separator Engage Switch

3 - Harvest Smart™ Feed Rate Enable Switch (If Equipped)

4 - Engine Speed Switch (High Speed)

5 - Engine Speed Switch (Medium Speed)

6 - Engine Speed Switch (Low Speed)

7 - Air Compressor Switch

8 - ProDrive Mode 2 Switch (If Equipped)

9 - ProDrive Mode 1 Switch (If Equipped)

10 - Park Brake Switch (If Equipped)

11 - Four-Wheel Drive Switch (High Speed) (If Equipped)

12 - Four-Wheel Drive Switch (Slow Speed) (If Equipped)

13 - Differential Lock Switch (If Equipped)

14 - Header Height/HydraFlex™ Pressure Control Dial

15 - Dial-A-Speed Dial

16 - Road Transport Disconnect Switch

Before operating machine, become familiar with switches and controls.
