Multi-Function Lever Switches

H109637
H109637-UN-15JAN14

Front View

H109638
H109638-UN-15JAN14

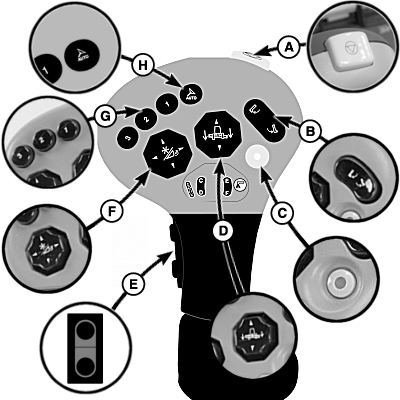

Rear View

A - Quick Stop Switch

B - Unloading Auger Swing Switch

C - Unloading Auger Drive Engage/Disengage Switch and Indicator Light

D - Header Raise/Lower Switch and Lateral Tilt Switch (Optional)

E - Machine Sync Buttons (If Equipped)

F - Reel Raise/Lower, Reel Fore/Aft (Optional), Feeder House Backshaft Speed, and Adjustable Corn Head Deck Plates (Optional)

G - Activation Buttons (1, 2, 3)

H - AutoTrac™ Resume (If Equipped)

I - Draper Cutterbar Tilt Switch and Hydraulic Feeder House Fore/Aft Tilt Switch 1

J - Draper Cutterbar Tilt Switch and Hydraulic Feeder House Fore/Aft Tilt Switch 1

K - Not Used

AutoTrac is a trademark of Deere & Company
1 Depending on machine options and header types, switches are reprogrammable to control draper cutterbar tilt (600D Drapers), hydraulic feeder house fore/aft tilt (if equipped)
