Quick Stop Switch

CAUTION:

H109720
H109720-UN-29JAN14

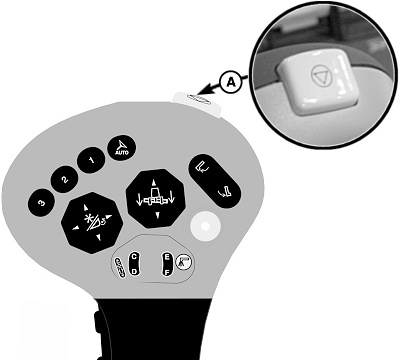

A - Quick Stop Switch

ProDrive™ Machines: Pressing quick stop switch with separator engaged causes machine to slowly roll to a stop. Multi-function lever must be returned to neutral position to reset propulsion system.

Mechanical Shift Machines: When pressing quick stop switch with separator engaged, operator is responsible for pulling back on multi-function lever to stop machine.

It is always recommended to wear your seat belt to avoid serious injury.

IMPORTANT: Header drive can be disengaged by this switch in case of malfunctions.

Quick stop switch (A) allows operator to simultaneously shut OFF the following at the same time in case of an emergency:

  • Header Engage
  • Unloading Auger Drive
  • Unloading Auger Swing
  • ProDrive™ (propulsion movement slowly stops) (If Equipped)

Pushing unloading auger drive switch on multi-function lever restarts the unloading auger drive. To engage header drive, turn header engage switch OFF and back ON.
