Draper Cutterbar Tilt Switch and Hydraulic Feeder House Fore/Aft Tilt Switch

NOTE:

H109639
H109639-UN-15JAN14

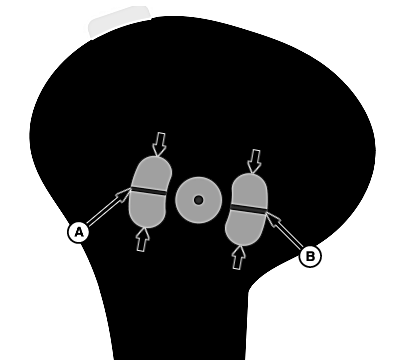

Multi-Function Lever (Rear View)

A - Draper Cutterbar Tilt Switch and Hydraulic Feeder House Fore/Aft Tilt Switch

B - Draper Cutterbar Tilt Switch and Hydraulic Feeder House Fore/Aft Tilt Switch

Depending on machine options and header types, switches are reprogrammable to control:
  • Draper Cutterbar Tilt (600D Drapers)
  • Hydraulic Feeder House Fore/Aft Tilt (If Equipped)

Refer to Multi-function Lever Setup in CommandCenter™ Display Screens section for further information on reprogramming.


Draper Cutterbar Tilt Switch (600D Drapers)

Draper cutterbar tilt switch (600D Drapers) (A or B) allows operator to increase or decrease cutterbar angle.

    System Requirements:

  • Properly equipped header is connected.
  • Engine is running.
  • Road transport disconnect switch must be in field position.
  • Header is engaged.
  • Multi-function lever switches are functionally assigned.

Push and hold top of switch to increase cutterbar angle.

Push and hold bottom of switch to decrease cutterbar angle.


Hydraulic Feeder House Fore/Aft Tilt Switch (If Equipped)

Hydraulic feeder house fore/aft tilt switch (if equipped) (A or B) allows operator to control the position of the feeder house tilt frame.

    System Requirements:

  • Engine is running.
  • Road transport disconnect switch must be in field position.
  • Multi-function lever switches are functionally assigned.

Push and hold top of switch to tilt feeder house forward.

Push and hold bottom of switch to tilt feeder house rearward.

OU90500,0000549-19-20160204
