Discharge Beater Wear Strips—Replacing (S660 and S670)

CAUTION: Shut OFF engine, set park brake and remove key.

NOTE: Wear strips can be reversed for additional wear.

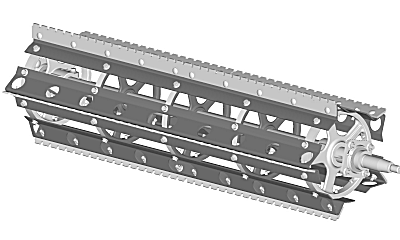

Discharge beater wings and wear strips can be replaced without removing the discharge beater.

H109628-UN-14JAN14

H109629-UN-14JAN14

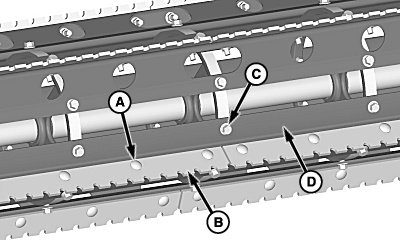

A - Round Head Cap Screws

B - Discharge Beater Wear Strip

C - Cap Screws

D - Discharge Beater Wings

NOTE: If discharge beater is removed from machine, or has been serviced, tighten clamp bolts before securing wings.

Remove round head cap screws (A) and replace discharge beater wear strips (B) as required. Tighten round head cap screws to specification.

Item	Measurement	Specification
Discharge Beater Wear Strip Round Head Cap Screws	Torque	70 N·m (52 lb.-ft.)

Remove cap screws (C) and replace discharge beater wings (D) as required. Tighten cap screws to specification.

Item	Measurement	Specification
Discharge Beater Wing Cap Screws	Torque	70 N·m (52 lb.-ft.)
