Engine Belt—Routing (S680 and S690)

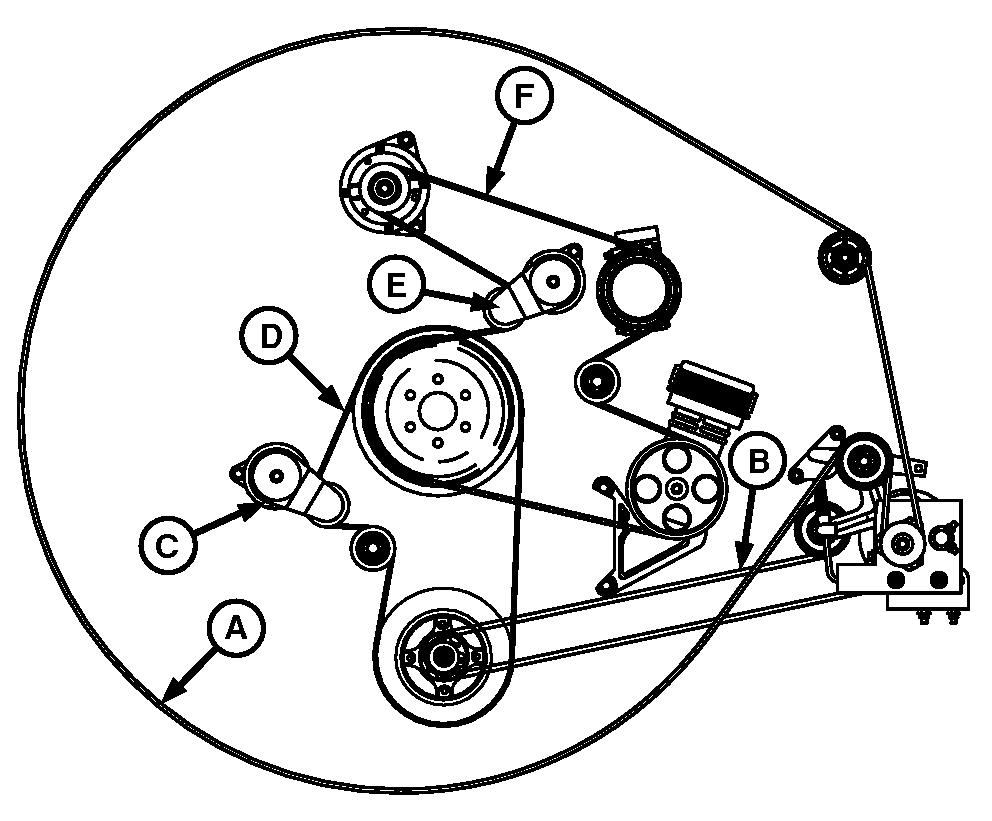

BM004708-UN-29MAR16

A - Rotary Screen (Driven) Belt

B - Rotary Screen (Drive) Belt

C - Cooling Fan Tensioner

D - Cooling Fan Belt

E - Accessories Tensioner

F - Alternator, Air Conditioner Compressor, and Air Compressor Belt
