Engine Accessory/Fan Drive/Air Compressor Belt—Replacing (S660 and S670)

1. CAUTION: Shut OFF engine, set parking brake and remove key.

   Pull lockout pin (A) and rotate handrail (B) up until handrail locks into place to open separator access cover (C).


   BM004682-UN-29FEB16

   A - Lock-Out Pin

   B - Handrail

   C - Separator Access Cover

---




2. Remove cap screws (A) and shield (B).


   H106845-UN-08FEB13

   Front Side Of Engine

   A - Cap Screws (7 Used)

   B - Shield

---

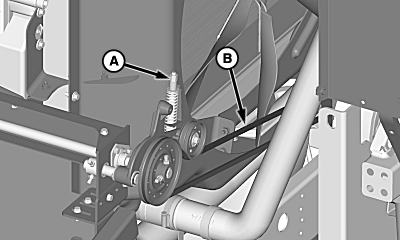

3. Loosen nuts (A) and remove rotary screen drive belt (B).


   H95701-UN-15MAR10

   A - Nuts

   B - Rotary Screen Drive Belt

---




4. Pull latches (A) and open rotary screen door (B).


   BM004683-UN-29FEB16

   A - Latches

   B - Rotary Screen Door

---




5. Remove nuts (A) and loosen hose clamps (B).


   H95647-UN-10MAR10

   A - Nuts (7 Used)

   B - Clamps

   C - Air Duct

   Lay air duct (C) out of the way.

---




6. Remove shield (A).


   H95648-UN-10MAR10

   A - Shield

---




7.

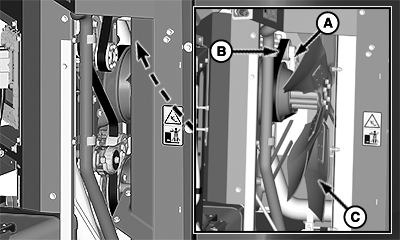

   BM004671-UN-26FEB16

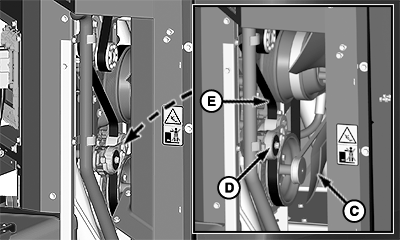

   Air Compressor Belt


   BM004672-UN-26FEB16

   Engine Accessory/Fan Drive Belt


   BM004673-UN-26FEB16

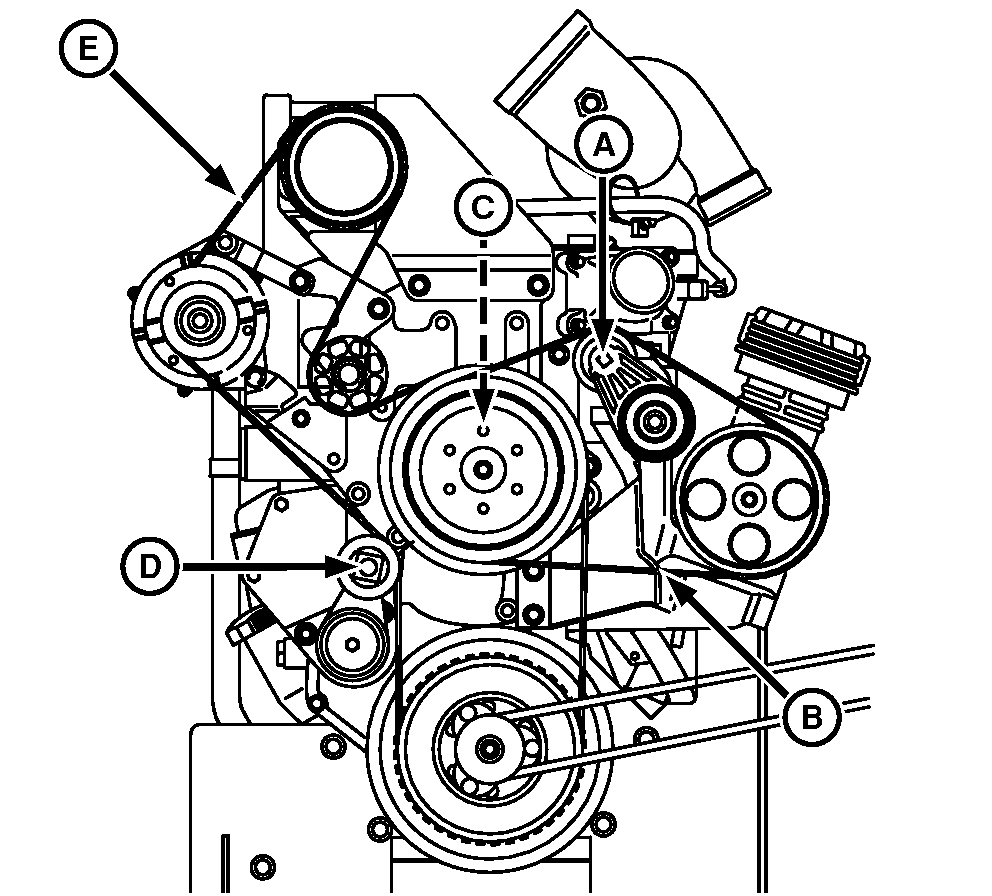

   A - Tensioner Arm

   B - Air Compressor Belt

   C - Fan Blades

   D - Tensioner Arm

   E - Engine Accessory/Fan Drive Belt

   Use breaker bar to relieve belt tension from tensioner arm (A).

---




8. Remove air compressor belt (B) and work belt over fan blades to remove.

9. Use a breaker bar to relieve belt tension from tensioner arm (D).

10. Remove engine accessory/fan drive belt (E) and work belt over fan blades (C) to remove.

11. Install belts in reverser order.

    NOTE: First install engine accessory/fan belt and after install air compressor belt.

12. Install rotary screen drive belt (B).


    H95701-UN-15MAR10

    A - Nuts

    B - Rotary Screen Drive Belt

---




13. Tighten nuts (A) until washer is positioned between end of gauge and bottom of step.

14. Install previously removed shield (front side).

15. Close separator access cover and lower handrail.

16. Install previously removed shield (rear side) and air duct.

17. Close and latch rotary screen door.
