Rotary Screen Drive Belt—Replacing (S680 and S690)

  1. CAUTION: Shut OFF engine, set parking brake and remove key.

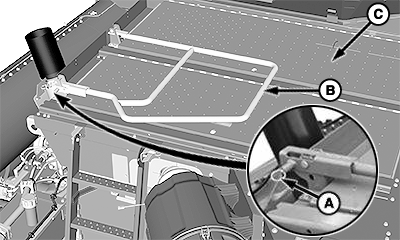

    Pull lockout pin (A) and rotate handrail (B) up until handrail locks into place to open separator access cover (C).

    BM004682
    BM004682-UN-29FEB16

    A - Lock-Out Pin

    B - Handrail

    C - Separator Access Cover

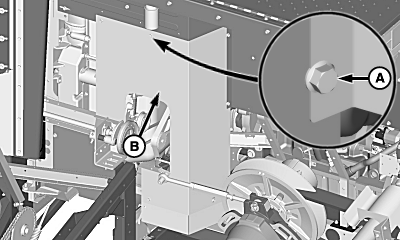

  2. Remove cap screws (A) and shield (B).

    H106845
    H106845-UN-08FEB13

    Front Side Of Engine

    A - Cap Screws (7 Used)

    B - Shield

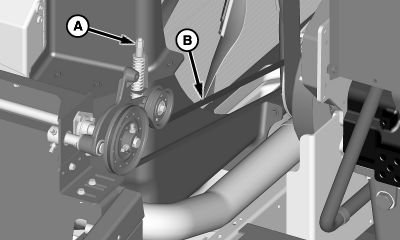

  3. Loosen nuts (A) and remove rotary screen drive belt (B).

    H95693
    H95693-UN-15MAR10

    A - Nuts

    B - Rotary Screen Drive Belt


  4. Install replacement belt and tighten nuts until washer is positioned between end of gauge and bottom of step.

  5. Install previously removed shield, close separator access cover, and lower handrail.
