Air Compressor System

IMPORTANT: Never clean engine air filters or debris management air filters while machine engine is running.

NOTE: For optimal air compressor performance engine must be running to provide continuous air supply.

Not recommended to inflate tires on machine or operate air tools.

Not recommended to use both coupler connections simultaneously.

H112987-UN-20FEB15

H115838-UN-09SEP15

BM004686-UN-29FEB16

BM004687-UN-29FEB16

A - Reservoir

B - Air Compressor Hose Coupler

C - Air Compressor Hose Coupler

D - Air Compressor Hose/Wand

E - Air Compressor Hose/Wand

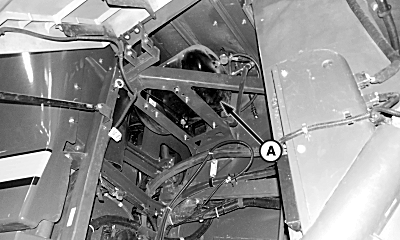

Air compressor is on engine deck and reservoir (A) is on the right-hand side of machine.

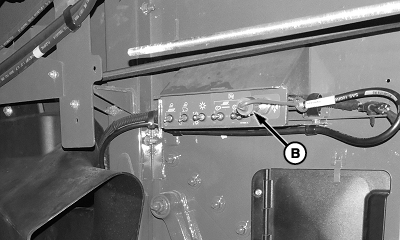

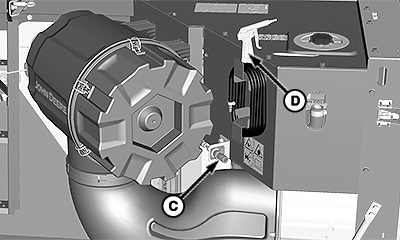

Air compressor hose coupler (B) is on left-hand side of machine and air compressor hose coupler (C) is on engine deck.

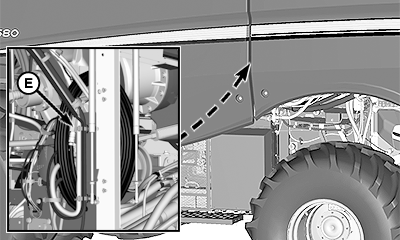

Air compressor hose/wand (D) is on engine deck and air compressor hose/wand (E) is on left-hand side of machine.
