Transporting Machine on a Trailer

  1. Refer to Driving Machine on Roads earlier in this section for additional information that MUST be done before transporting machine on a trailer.

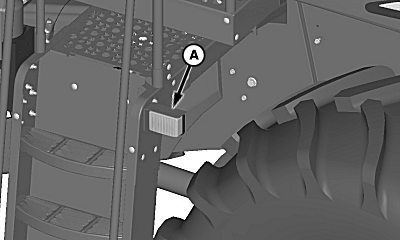

    H102533
    H102533-UN-28JUN11

    A - Light Bracket


  2. Remove header and outside dual wheels (if equipped).

  3. Drive machine on trailer and move multi-function lever to neutral position.

  4. Dual Ladder Landing Configuration: Lower feeder house onto trailer to allow ladder landing to be swung to transport position.

  5. Shut OFF engine, set parking brake and remove key.

  6. Fold radio antenna down and retain with hook (if equipped). If hook is not available, retain antenna to cab roof with tape.

  7. Single Tire Configuration: Disconnect wiring harness and remove light bracket (A).

  8. Single Tire Configuration: Remove and retain cab handrail (A).

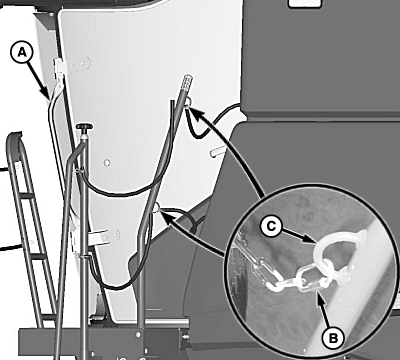

    H102527
    H102527-UN-28JUN11

    A - Handrail

    B - Chain Link

    C - Handrail Loops


  9. IMPORTANT: Possible injury to you or others can occur from falling. Be careful when disconnecting safety chains and dismounting ladder landing.

    NOTE: Assemble chain back onto existing loops on ladder handrail and loops on grain tank. This shortens the chain and prevents it from damaging the composite panels.

    Single Tire Configuration: Disconnect and retain closure chain link (B) from handrail loops (C).

  10. NOTE: Cab ladder must be swung past inner most detent position to allow ladder landing to contact shipping bracket.

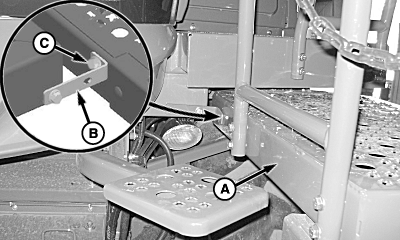

    H102532
    H102532-UN-28JUN11

    A - Ladder Landing

    B - Shipping Bracket

    C - Cap Screw

    Single Tire Configuration: Swing ladder landing (A) to transport position until it contact shipping bracket (B) and install cap screw (C).

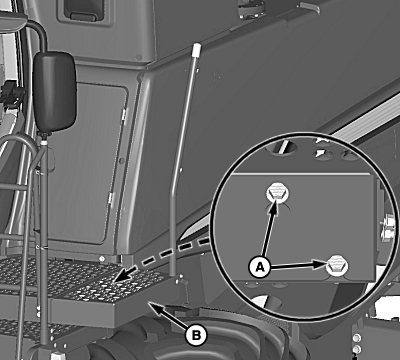

  11. Single Tire Configuration: Loosen cap screws (A) and remove ladder landing (B).

    H102531
    H102531-UN-28JUN11

    A - Cap Screws (5 Used)

    B - Ladder Landing


  12. IMPORTANT: Possible injury to you or others can occur from falling. Be careful when disconnecting safety chains and dismounting ladder landing.

    NOTE: Assemble chain back onto existing loops on grain tank. This shortens the chain and prevents it from damaging the composite panels.

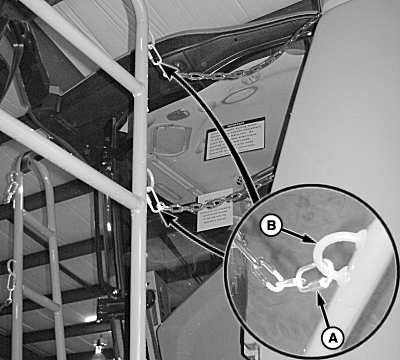

    H102501
    H102501-UN-27JUN11

    A - Chain Link

    B - Handrail Loop

    Dual Tire Configuration: Disconnect and retain closure chain link (A) from handrail loop (B) on both sides of handrail.

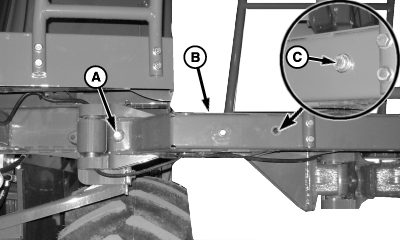

  13. Dual Tire Configuration: Remove cap screw (A) and swing ladder landing (B) to transport position.

    H102502
    H102502-UN-27JUN11

    A - Cap Screw

    B - Ladder Landing

    C - Cap Screw


  14. Dual Tire Configuration: Install previously removed cap screw (C) in storage position as shown.

  15. IMPORTANT: Feeder house MUST be lowered onto trailer to avoid contact between ladder landing and feeder house drive shaft when ladder is swung forward.

    NOTE: Cab ladder must be swung past inner most detent position to allow ladder landing to contact shipping bracket.

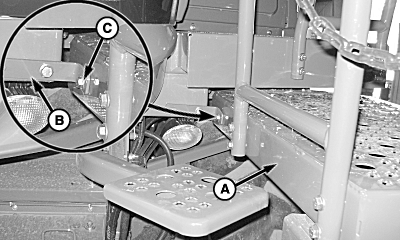

    H102503
    H102503-UN-28JUN11

    A - Ladder Landing

    B - Shipping Bracket

    C - Cap Screw

    Dual Tire Configuration: Swing ladder landing (A) to transport position until it contact shipping bracket (B) and install cap screw (C).

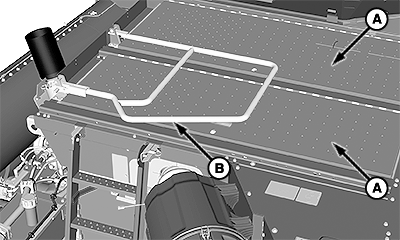

  16. Lower engine access covers (A) and handrail (B) to lock covers into place.

    BM004688
    BM004688-UN-29FEB16

    A - Engine Access Covers

    B - Handrail


  17. Tier 2/Stage II Engines: Tape muffler cap closed to prevent damage to turbocharger.

  18. CAUTION: Possible injury or death to you or others can occur from falling. Use a ladder or equivalent with an appropriate load rating to access location when installing unloading auger retaining cap screw. Do not attempt to access location from engine platform.

    TS249
    TS249-UN-23AUG88

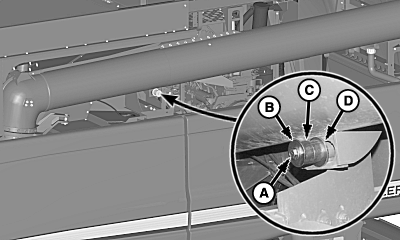

    H98764
    H98764-UN-21OCT10

    A - Cap Screw

    B - Washer

    C - Spacer

    D - Washer

    Pinned Unloading Auger (If Equipped):

    1. Retrieve cap screw (A), washer (B), spacer (C), and washer (D) from tool box.

    2. Install hardware as shown to retain unloading auger.


  19. CAUTION: Possible injury or death to you or others can occur from falling. Use a ladder or equivalent with an appropriate load rating to access location when installing unloading auger retaining pin. Do not attempt to access location from engine platform.

    TS249
    TS249-UN-23AUG88

    H97168
    H97168-UN-21OCT10

    A - Pin

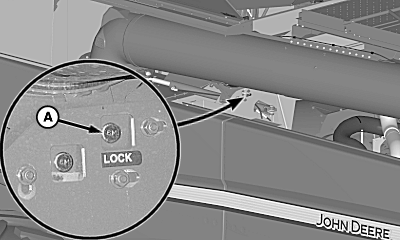

    Cradled Unloading Auger (If Equipped):

    1. Retrieve pin (A) and spring pin from tool box.

    2. Install hardware as shown to retain unloading auger.

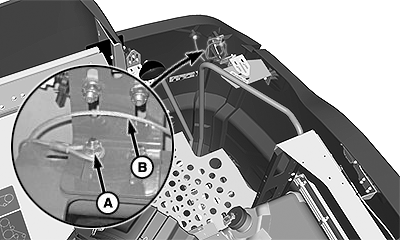

  20. Remove hardware (A) and remove cable (B) from storage position.

    BM004594
    BM004594-UN-11FEB16

    A - Hardware

    B - Cable

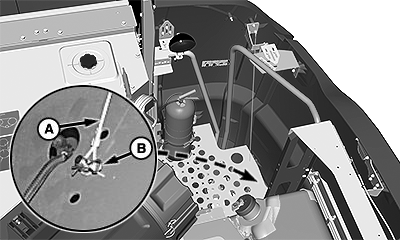

  21. NOTE: Verify that cable is installed on inside portion of handrail.

    Adjust pin to different positions if cable does not reach.

    BM004593
    BM004593-UN-11FEB16

    A - Cable

    B - Spring Pin

    Install cable (A) over pin and retain with spring pin (B).

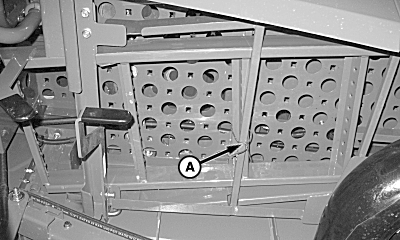

  22. Wire down ladder extension and platform (A).

    H97171
    H97171-UN-29JUN10

    A - Ladder Extension and Platform

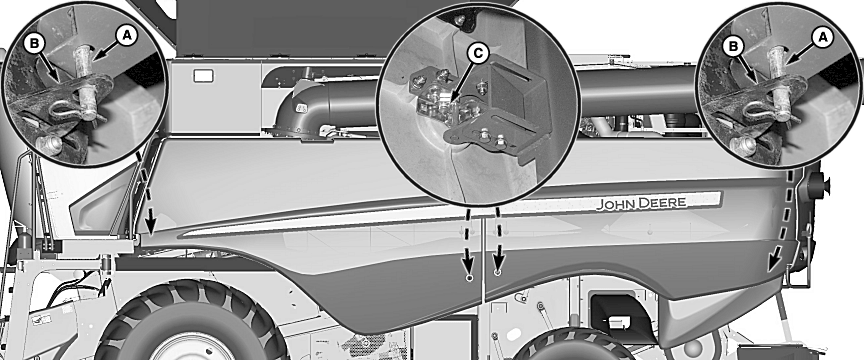

  23. Install pins (A) through locking plates (B) and retain with spring pins at front and rear corners of left-hand gull wing doors. Repeat on opposite side of machine.

    H97149
    H97149-UN-08OCT10

    A - Pins

    B - Locking Plates

    C - Latches


  24. Wire down gull wing doors at latches (C). Repeat on opposite side of machine.

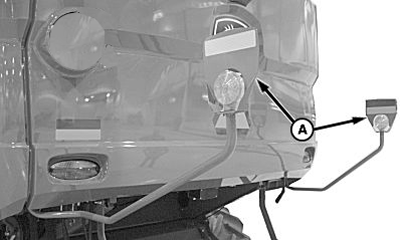

  25. Swing left-hand and right-hand hazard lights (A) rearward as shown.

    CQ290071
    CQ290071-UN-25FEB14

    A - Hazard Lights

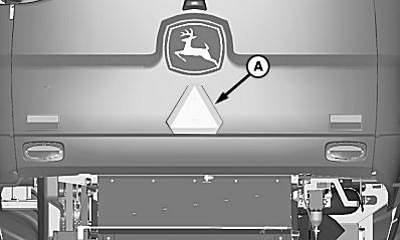

  26. Cover up slow moving vehicle emblem (A).

    CQ290072
    CQ290072-UN-25FEB14

    A - Slow Moving Vehicle Emblem


  27. IMPORTANT: Fasten machine to trailer with chains.

    Fasten machine to trailer with chains (see Machine Tie Down Location Decal on cab ladder for tie-down information).

OU90500,000055E-19-20160229
