Cleaning Out Machine (Periodic)

The photographs in this section show area of the machine that require regular inspection and cleaning. While there are other areas that require regular cleaning, frequent attention to these areas provides the greatest impact on fire prevention.

Some of these photographs show accumulations of crop material and other debris prior to cleaning. This type of accumulation is not normal; it was allowed for illustrative purposes only.

IMPORTANT: These areas may require more frequent cleaning, even multiple times per day, depending on harvest conditions. Be aware of harvest conditions and adjust your cleaning schedule to ensure proper machine function and to reduce the risk of fire.

Other areas not covered in this section may also collect crop debris and MUST be cleaned periodically for machine function and appearance. Thoroughly inspect the entire machine on a regular basis throughout the harvest season.

Always follow all safety procedures posted on the machine and in the Operator’s Manual. Before carrying out any inspection or cleaning, always shut OFF engine, set parking brake and remove key.

Thoroughly clean machine from top to bottom with compressed air. First clean all areas accessible from engine deck. Start with engine compartment and work outwards and counterclockwise to other areas around engine compartment, floor underneath engine, top rear of rotor and rear deck, including top of diesel particulate filter (if equipped). Once top areas of machine are clean, proceed to cleaning areas accessible from ground level.

From ground level, clean rear underside of fuel tank area and top of the rear tailboard of the residue disposal system. Diesel particulate filter area (if equipped) will also need to be cleaned from ground level. Once the cleaning from ground level is finished, recheck engine compartment for any crop debris that could have blown in from ground level cleaning.

Engine Compartment (Top Areas)

BM004595-UN-11FEB16

BM004596-UN-11FEB16

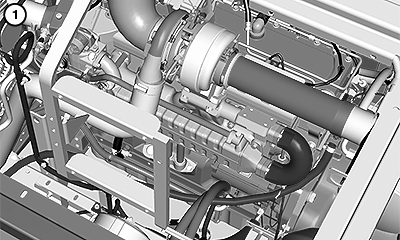

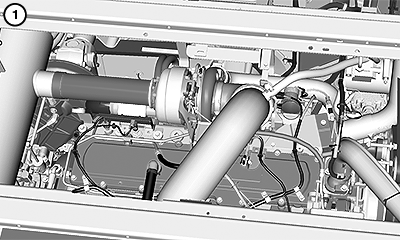

(1) — Top Area of Engine and Turbocharger

Engine Compartment (Top Areas)

BM004597-UN-11FEB16

H105226
H105226-UN-02MAY12

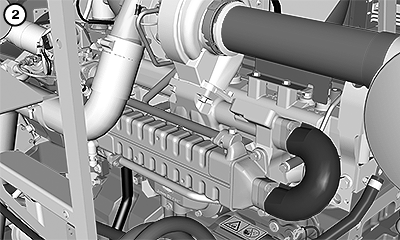

(2) — Exhaust Manifold and Manifold Shield

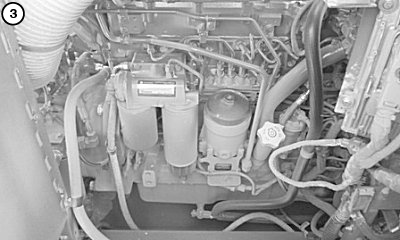

(3) — Around Engine

Engine Compartment (Top Areas)

H105546
H105546-UN-21JUN12

H105547
H105547-UN-21JUN12

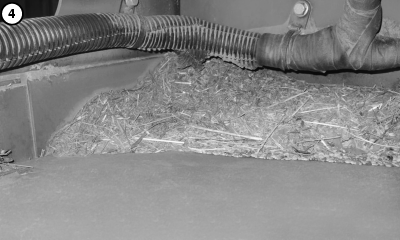

(4) — Underneath Engine

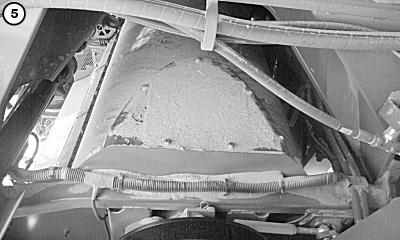

(5) — Top Rear of Rotor

Engine Compartment (Top Areas)

H105548
H105548-UN-21JUN12

BM004598-UN-11FEB16

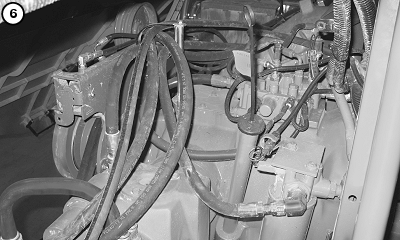

(6) — Main Engine Gearcase

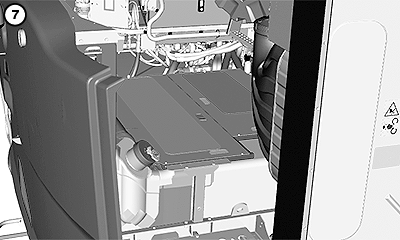

(7) — On Top of Fuel Tank

Engine Compartment (Top Areas)

BM004599-UN-11FEB16

BM022614-UN-16OCT17

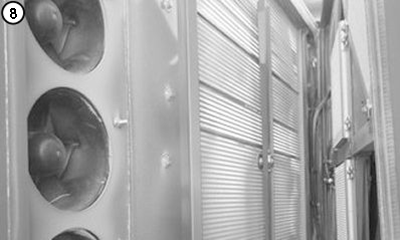

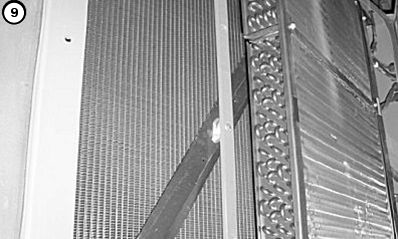

(8 and 9) — Engine Cooling Package

Ground Accessible (Bottom Areas)

H100574
H100574-UN-20JUN11

H105229
H105229-UN-19APR12

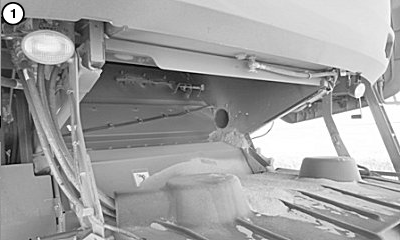

(1) — Underneath Fuel Tank

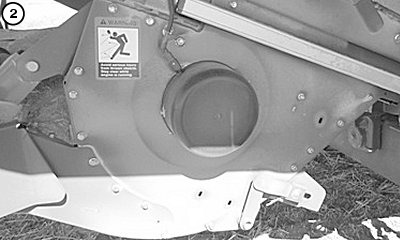

(2) — Areas Around Bearings and Bearing Guards (Various locations)

Ground Accessible (Bottom Areas)

IMPORTANT: Lubrication decals show the different locations of grease points around the machine. Follow lubrication times provided on decals and refer to hour intervals listed in Lubrication and Maintenance section for further information.

Bearing failures or overheating can result in a fire. To reduce bearing failures or overheating, always refer to lubrication decals on machine.

CQ298712-UN-25FEB14

Fuse Center (S660 and S670)

H105230
H105230-UN-02MAY12

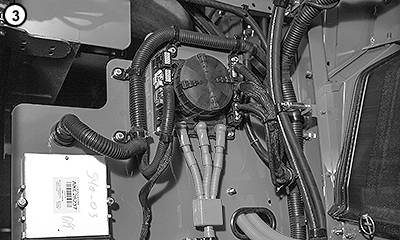

(3) — Fuse Center and Battery Box Areas

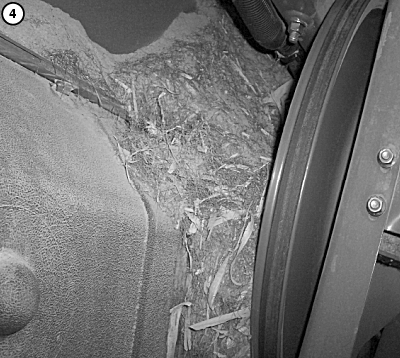

(4) — Clean Grain Elevator Drives

Ground Accessible (Bottom Areas)

H105336
H105336-UN-02MAY12

H105231
H105231-UN-02MAY12

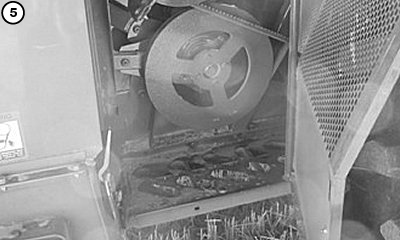

(5) — Right Side Walk Area

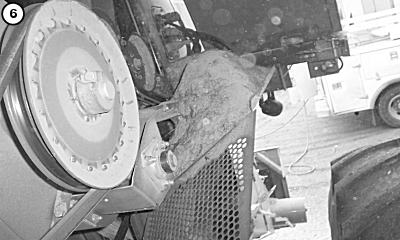

(6) — Right Side Mud Shields

Ground Accessible (Bottom Areas)

H105337
H105337-UN-02MAY12

H105338
H105338-UN-02MAY12

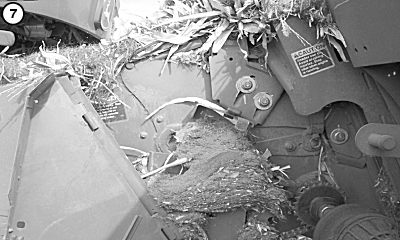

(7) — Right Side Feeder House Shields

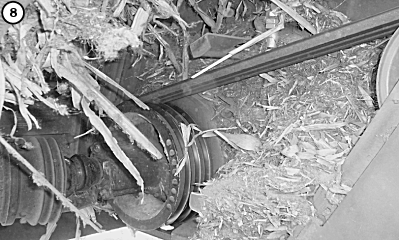

(8) — Left Side Feeder House Shields

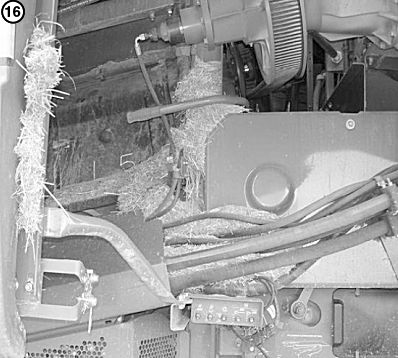

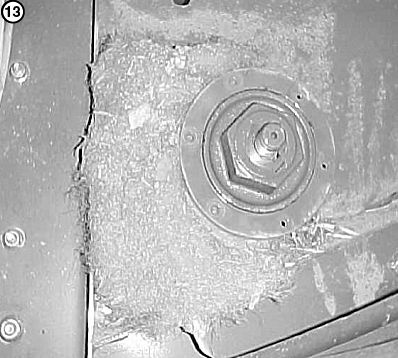

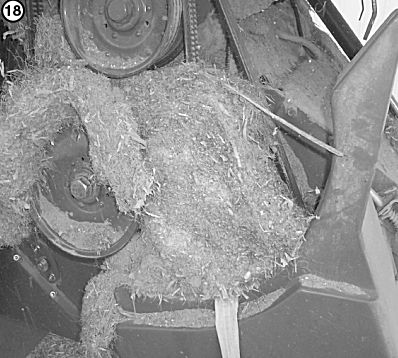

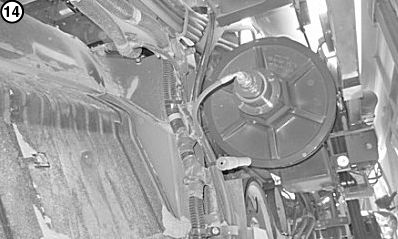

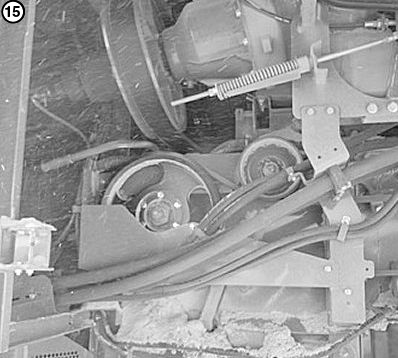

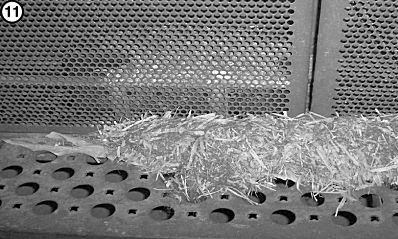

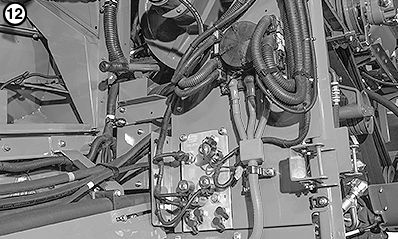

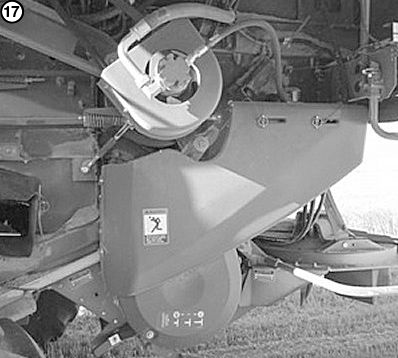

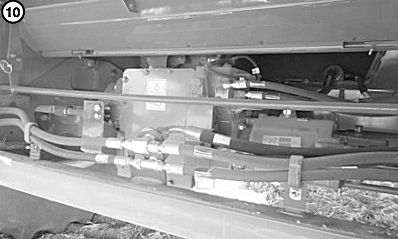

Ground Accessible (Bottom Areas)

BM022604-UN-16OCT17

Before Being Cleaned

BM002273-UN-03AUG17

After Being Cleaned

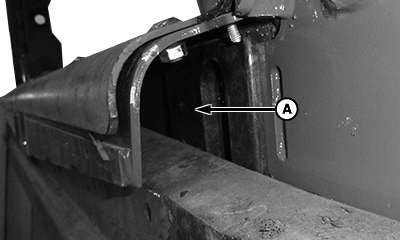

A - Dirt and Material Accumulation

B - Lateral Tilt Frame

C - Fore/Aft Tilt Frame

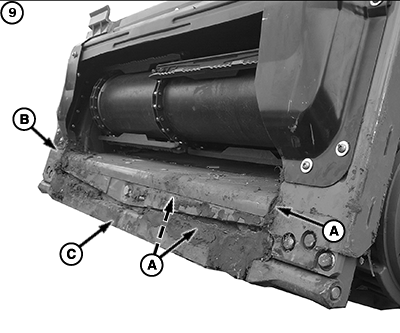

(9) — Between the Lateral Tilt Frame and the Fore/Aft Tilt Frame

Wet Conditions: Clean the dirt and material accumulation at the end of each day or if notice that the lateral tilt is decreasing the range.

Normal Conditions: Check if the lateral tilt is with total range. If necessary clean the dirt.

Remove the platform from machine.
Check the dirt accumulation.
As you clean, activate the lateral tilt to the right-hand and left-hand and check if the movement is free.
Clean as necessary until total range is reached.
