Cleaning Out Machine (Annual and Specialty Crops)

CAUTION: To prevent injury, never clean machine with engine running and separator engaged. Shut OFF engine, set parking brake and remove key.

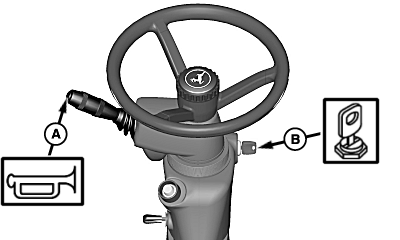

H97186-UN-02NOV10

A - Horn

B - Key Switch

The following instructions are recommended when cleaning out machine for certified seed crops or when transporting machine inter-state.

CAUTION: Block header safely so it does not move. Lower reel safety stops.

Remove header from machine.

Drive machine over end rows or bumps to jar and shake dirt loose. Shut OFF engine, set parking brake and remove key.

Open or remove all doors and drain holes.

CAUTION: Sound horn (A) to clear everyone from area. Stay clear of machine when discharging chaff.

Turn key switch (B) to start engine.

Engage separator until chaff stops coming out rear of machine.

Lower engine rpm to low idle and engage separator several times. Running the separator at low idle removes dirt from inside the rotor.

Move throttle to high rpm and run for a few minutes. Repeat cycle until chaff no longer comes out rear of machine.

CAUTION: Keep bystanders clear of machine when discharging chaff.

Drive machine onto blocking so right-hand side is about 150 mm (6 in) higher, or park on incline so dirt can runout.

CAUTION: Shut OFF engine, set parking brake, remove key, block wheels and lower feeder house safety stop.

When working with compressed air in dusty conditions, you must wear goggles and dust mask for personal protection. Air hose must have a 2 m (6 ft) wand (end).

H39607-UN-11OCT88

Start at top of machine and work down.

S660 and S670:

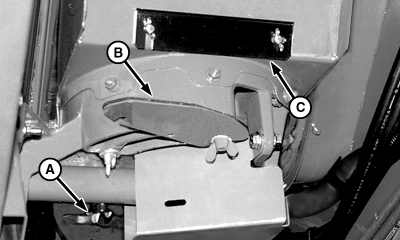

Open cleanout doors (A), (B) and (C).

H62230-UN-19JAN00

A - Cleanout Door

B - Cleanout Door

C - Cleanout Door

Clean grain from under grain tank cross augers over to the sump.

Clean grain from edges of unloading auger sump to the bottom. Grain must be cleaned out from doors standing on ground.

S680 and S690:

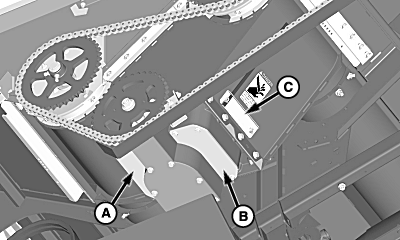

Open cleanout doors (A), (B) and (C).

H98866-UN-27OCT10

A - Cleanout Door

B - Cleanout Door

C - Cleanout Door

Clean grain from under grain tank cross augers over to the sump.

Clean grain from edges of unloading auger sump to the bottom. Grain must be cleaned out from doors standing on ground.

Grain Tank Sample Trough (If Equipped):

Remove grain sample trough (A) and place sample trough in storage position (B).

H98766-UN-21OCT10

H62943-UN-03MAR00

Sample Trough Storage Position

A - Grain Sample Trough

B - Grain Sample Trough (Storage Position)

C - Clamps

Grain Tank Loading Auger (Grain Tank Extensions):

Release clamps (A) and lower auger.

H102235-UN-15JUN11

A - Clamps

Grain Tank Loading Auger (Grain Tank Covers):

CAUTION: DO NOT pull or remove pin (A) to lower grain tank loading auger. Removing pin could result in personal injury or machine damage.

Grain tank loading auger is heavy. Use extra care when raising or lowering auger.

H102236-UN-15JUN11

A - Pin

B - Quick-Lock Pin

C - Pin

D - Turnbuckle

E - Handle

F - Auger

Remove quick-lock pin (B) and pin (C) from turnbuckle (D).

Use handle (E) to assist in lowering grain tank loading auger (F).

Clean top area and down into clean grain elevator to clean elevator chain. Clean all sides.

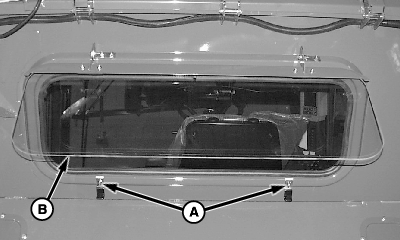

Loosen clamps (A) and swing grain tank window (B) up.

H76204-UN-28APR03

A - Clamps

B - Grain Tank Window

Cleanout area behind cab, around primary countershaft and over separator.

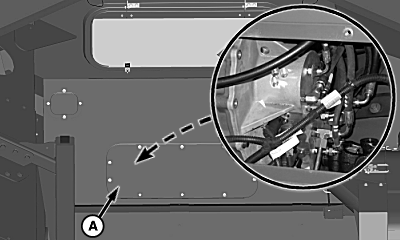

Remove access door (A) (if equipped) on front side of grain tank.

H87627-UN-13MAR07

A - Access Door

Cleanout material around multi-speed feeder house drive gearcase (if equipped).

Pull lockout pin (A) and rotate handrail (B) up until handrail locks into place.

BM004682-UN-29FEB16

A - Lock-Out Pin

B - Handrail

C - Engine Access Covers

Open engine access covers (C) and clean top side of engine compartment area and around separator on front side of engine.

Clean entire engine compartment area, especially under engine.

Wipe up any oil or grease found on engine area.

Pull lockout pin (A) and rotate ladder (B) up until ladder locks into place.

H95353-UN-25AUG10

A - Lock-Out Pin

B - Ladder

C - Cover

Pull filter access cover (C) open to release from magnet.

Clean rear side of engine compartment area.

Clean entire engine compartment area, especially under engine.

Wipe up any oil or grease found on engine area.

(S660 and S670):

NOTE: Clean areas out with compressed air, blowing from inside out.

H106852-UN-08FEB13

A - Radiator

B - Vacuum Duct

C - Transfer Duct

Open rotary screen door.

Clean the following areas from inside out:

• Radiator (A)
• Condenser
• Oil Cooler
• Charge Air Cooler

Clean out dirt from lower vacuum duct (B) and transfer duct (C).

(S680 and S690):

NOTE: Clean areas out with compressed air, blowing from inside out.

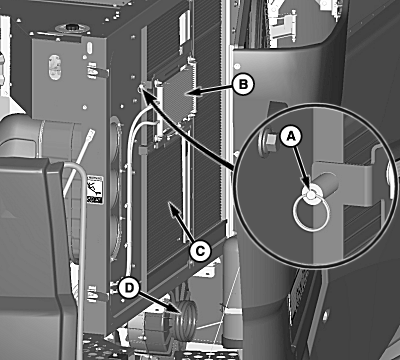

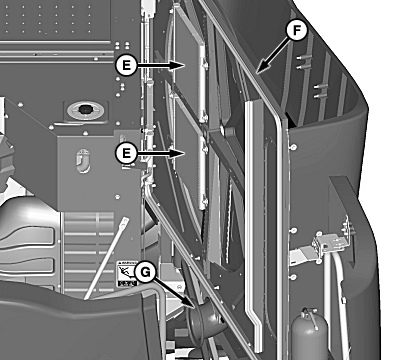

H106853-UN-08FEB13

H106854-UN-08FEB13

A - Lock-Out Pin

B - Fuel Cooler

C - Radiator

D - Vacuum Duct

E - Condensers

F - Rotary Screen Door

G - Transfer Duct

Open rotary screen door.

Pull lockout pin (A) and rotate fuel cooler (B) to clean.

Clean the following areas from inside out:

• Radiator (C)
• Oil Cooler
• Charge Air Cooler

Clean out dirt from lower vacuum duct (D).

Clean condensers (E) on rotary screen door (F).

Clean out dirt from transfer duct (G).

S660 and S670:

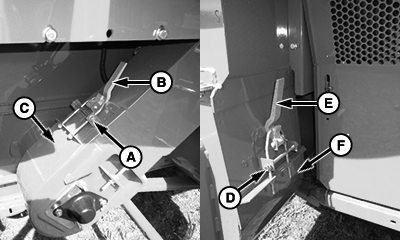

Remove screw and nut (A) and use handle (B) to open lower tailings elevator door (C).

BM000347-UN-09JUL15

BM000348-UN-09JUL15

A - Tailings Elevator Door Screw and Nut

B - Tailings Elevator Door Handle

C - Tailings Elevator Door

D - Grain Elevator Door Screw and Nut

E - Grain Elevator Door Handle

F - Grain Elevator Door

G - Wing Nuts

Clean Lower tailings elevator door (C).

Remove screw and nut (D) and use handle (E) to open grain elevator door (F).

Clean grain elevator door.

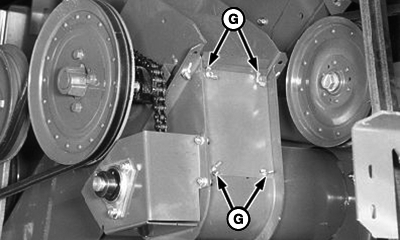

Remove wing nuts (G) and remove door at upper end of tailings elevator.

Remove material as needed and clean sides of elevator.

S680 and S690:

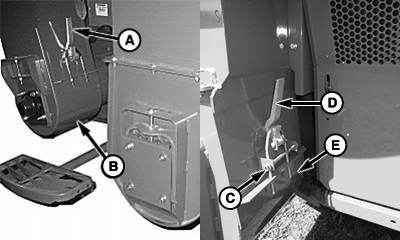

Use handle (A) to open tailings system elevator door (B).

BM000366-UN-20JUL15

A - Tailings Elevator Door Handle

B - Tailings Elevator Door

C - Grain Elevator Door Screw and Nut

D - Grain Elevator Door Handle

E - Grain Elevator Door

Remove screw and nut (C) and use handle (D) to open grain elevator door (E).

Clean grain elevator door.

Remove material as needed and clean sides of elevator.

S680 and S690:

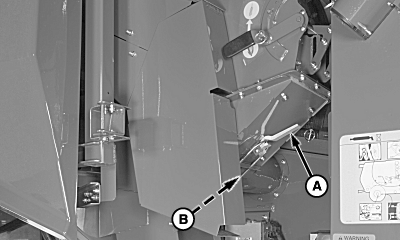

Use handle (A) to open tailings system auger door (B).

H97194-UN-30JUN10

A - Handle

B - Tailings System Auger Door

Remove material as needed and clean sides of elevator.

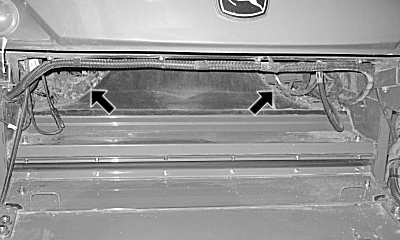

Cleanout chaffs between separator and sides of machine.

H100541-UN-02MAR11

H100486-UN-28FEB11

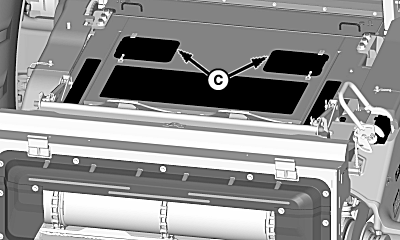

H90905-UN-27FEB08

A - Nuts

B - Feeder House Door

C - Feeder House Door

Pull door forward to remove.

Clean feeder house through top doors (B) and (C).

Lift conveyor chain and let chain snap back several times while cleaning.

Remove quick-lock pin and move lever (A) down and rearward to open feed plate.

H52761-UN-17MAY99

A - Lever

Cleanout feed plate area.

Push lever forward and up to close feed plate. Retain with quick-lock pin.

Remove quick-lock pin (A) and move lever (B) up to open stone trap.

H99239-UN-01DEC10

A - Quick-Lock Pin

B - Lever

Cleanout stone trap area.

Move lever down to close stone trap. Retain with quick-lock pin.

(If equipped): Remove cap screws from cleanout doors (A) to clean area.

H102538-UN-29JUN11

A - Cleanout Doors

Install cleanout doors and cap screws when cleaning is complete.

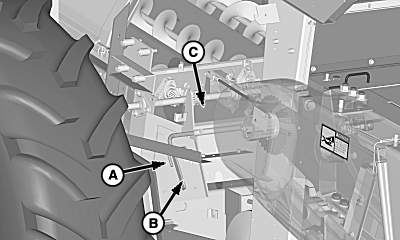

(If equipped): Pull lockout pin (A) and move handle (B) up to dump cleanout door (C) and move handle down to close and lock cleanout door.

H91139-UN-15APR08

A - Lock-Out Pin

B - Handle

C - Cleanout Door

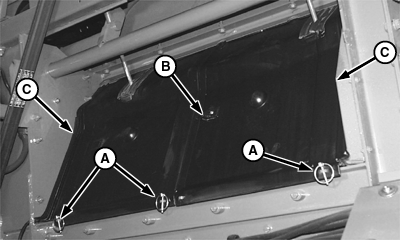

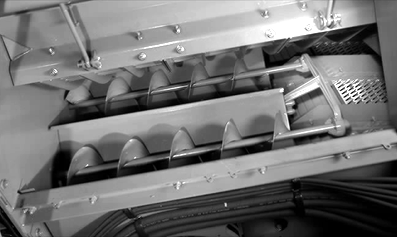

H62265-UN-19JAN00

H52708-UN-23MAR99

A - Quick-Lock Pins

B - Spring Latch

C - Separator Covers

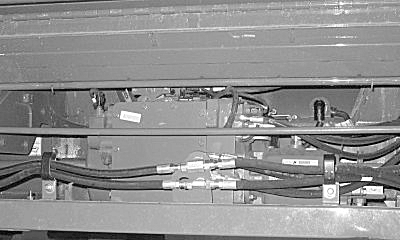

Clean off top of axle and transmission.

H99165-UN-22NOV10

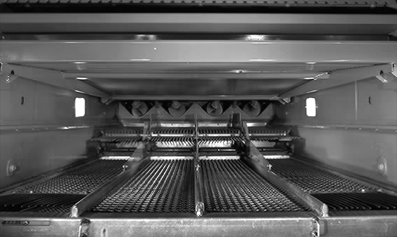

Open sieve and chaffer as far as possible and clean.

H52710-UN-23MAR99

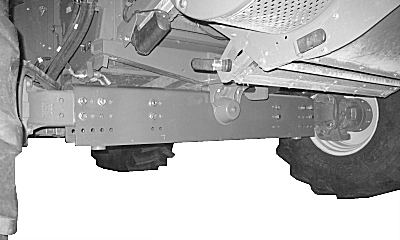

Clean rear axle area.

H100556-UN-02MAR11

Remove cap screw and nut (A) and open shield (B).

CQ290341-UN-03JUL14

A - Cap Screw and Nut

B - Shield

C - Cap Screw and Nut

D - Latch

E - Shield

Remove cap screw and nut (C) and turn latch (D) to unlock.

Lift and remove rear shield (B) and middle fan shield (E).

Cleanout fan area.

Remove cap screw and nut (A) and turn latch (B) to remove shield (C).

CQ290340-UN-03JUL14

A - Cap Screw and Nut

B - Latch

C - Shield

Cleanout area.

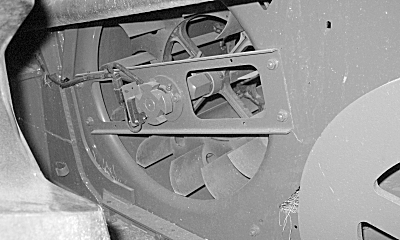

Clean area around fan.

H100557-UN-02MAR11

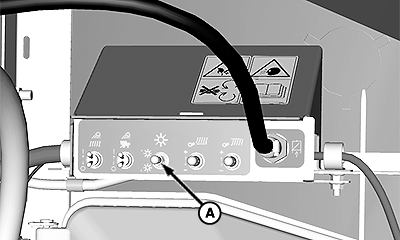

Raise chopper (if equipped) with switch (A).

BM004689-UN-29FEB16

A - Switch

Loosen wing nut (A) and use handle (B) to disengage knifeback and clean chopper.

H98137-UN-20SEP10

A - Wing Nut

B - Handle

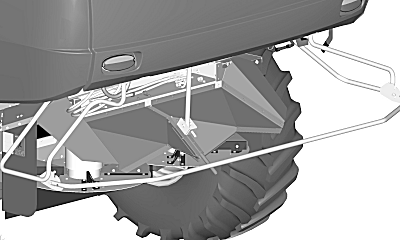

Clean chaff from spreader (if equipped) drive area and spreader hood.

H98906-UN-27OCT10
