Every 10 Hours

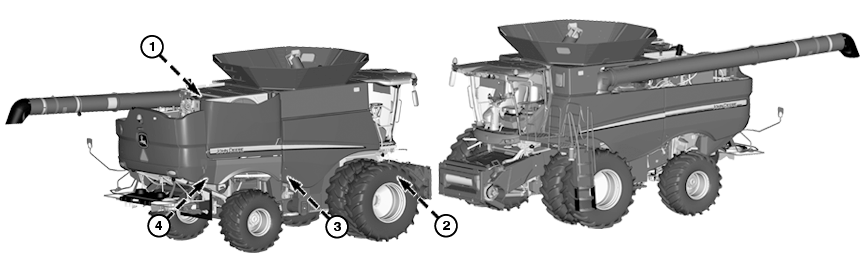

1. IMPORTANT:


   BM004601-UN-11FEB16


   BM004690-UN-29FEB16


   H115486-UN-19AUG15

   A - Surge Tank

   B - Lever

   C - Air Tank Drain Cable

   D - Fuel Precleaner Filter

   Service times are for average conditions. Service more often if machine is used in extreme conditions.

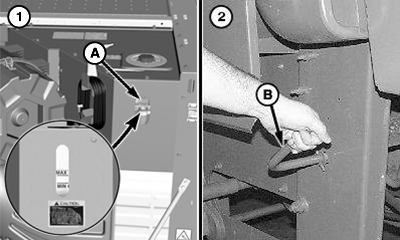

   Surge Tank - Check engine coolant level in surge tank (A) with engine cold. Level must be up to Max Cold line.

   NOTE: Coolant level must be between Max Cold and Min Cold lines. Add coolant as needed if coolant is below Min Cold line.

---




2. Stone trap - Remove quick-lock pin and dump stone trap with lever (B). Close stone trap and retain with quick-lock pin.

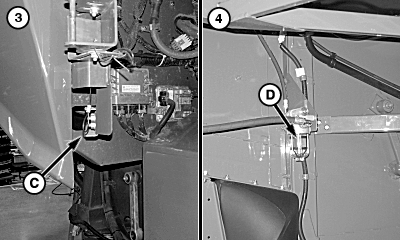

3. Air Compressor Reservoir - Pull air tank drain cable (C) and drain water from reservoir.

4. Fuel Precleaner Filter - Inspect fuel precleaner filter (D) for buildup and clean as necessary.
