Every 50 Hours

BM004603-UN-11FEB16

H87397-UN-13FEB07

S660 and S670

H93580-UN-05MAR09

S680 and S690

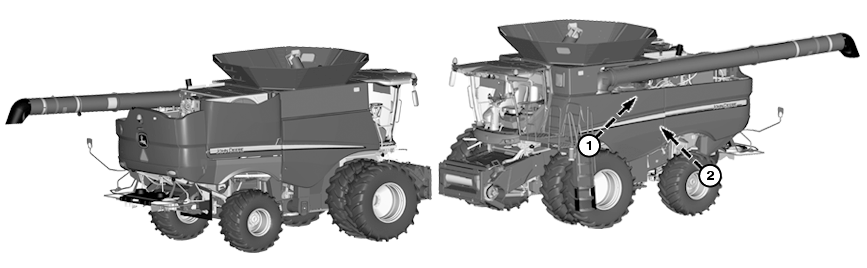

S660 and S670 Machines:

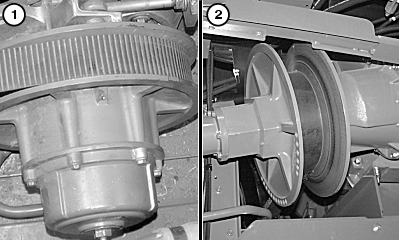

1. NOTE: Start machine and cycle separator through full speed range a couple of times to distribute grease evenly.

   Separator Variable Speed Driven Sheaves - Cycle sheaves through speed range if operated at high speed all the time. Cycling sheaves helps replenish bushings with grease already inside sheave cavity.

2. Separator Variable Speed Driver Sheave - Cycle sheaves through speed range if operated at high speed all the time. Cycling sheaves helps replenish bushings with grease already inside sheave cavity.

S680 and S690 Machines:

1. IMPORTANT: Separator Variable Speed Driven and Driver Sheaves: Pump 20—25 shots of grease into fitting. DO NOT OVER GREASE.

   Separator Variable Speed Driven Sheaves - Rotate sheaves to access fitting.

2. NOTE: Start machine and cycle separator through full speed range a couple of times to distribute grease evenly.

   Separator Variable Speed Driver Sheave - Close sheaves (high speed) before greasing fitting on outer sheave hub. Rotate sheave to access fitting. Cycle cylinder speed to distribute grease if operated at high speed all the time.
