Every 50 Hours

BM004606-UN-11FEB16

CQ290025-UN-09JUL13

H115552-UN-20AUG15

A - Drain

B - Cleanout Areas

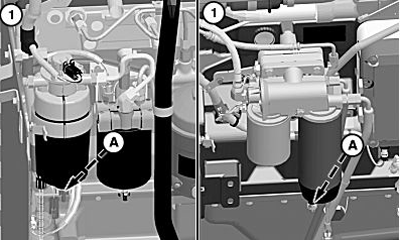

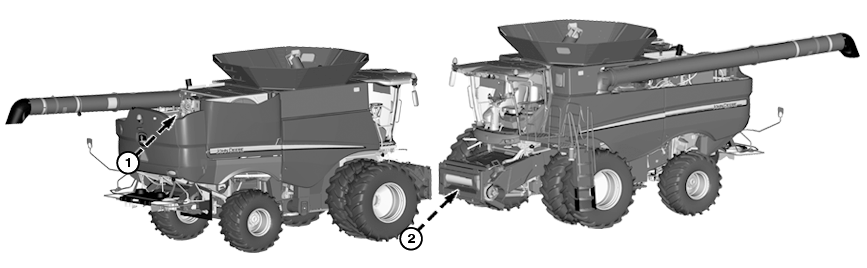

1. Water Separator Primary Fuel Filter - Check separator bowl for water. Open drain (A) and drain water out separator bowl.

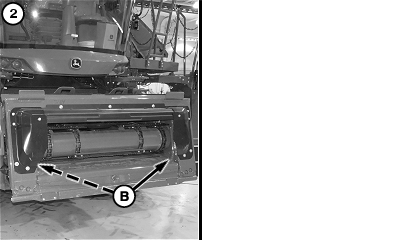

2. Lateral Tilt Feeder House - Check cleanout areas (B) for packed material which could prevent header from tilting. Clean out if necessary.
