Every 200 Hours

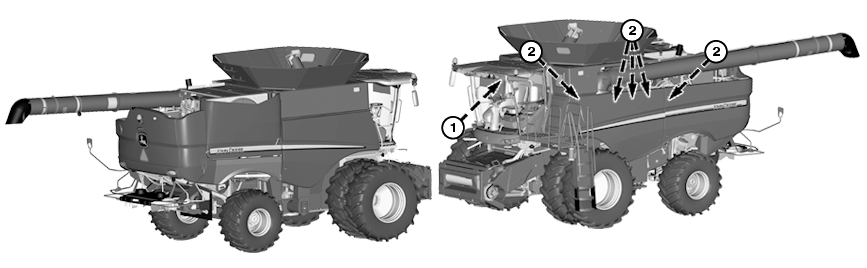

  1. BM004608
    BM004608-UN-11FEB16

    H108220
    H108220-UN-10JUN13

    H108221
    H108221-UN-10JUN13

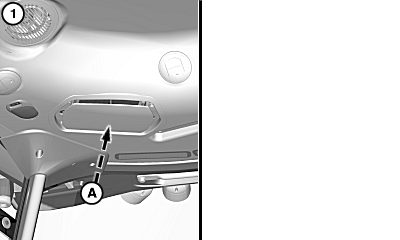

    A - Recirculating Filter

    Recirculating Filter - Remove cover to clean or replace recirculating filter (A).


  2. NOTE: Machines not equipped with multi-speed feeder house drive have one grease fitting.

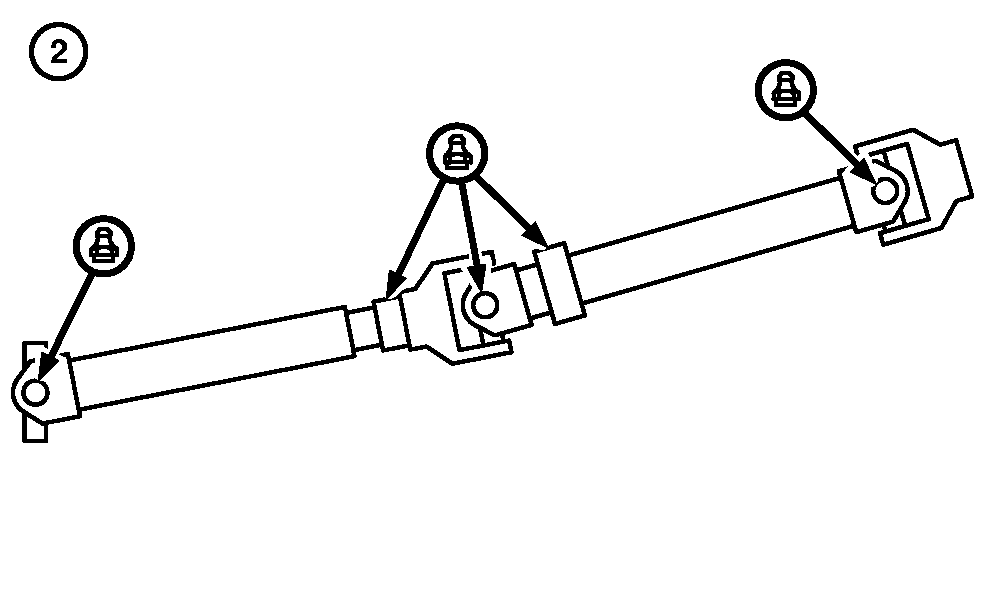

    S670, S680, and S690 Machines: Primary Countershaft (Multi-Speed Feeder House) - Rotate to access five fittings and grease.

OU90500,0000569-19-20160427
