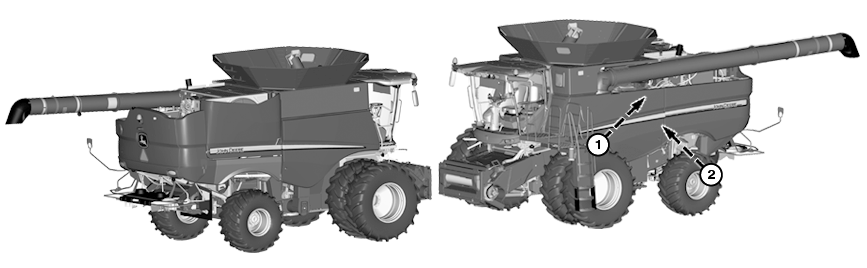

Every 200 Hours (S660 and S670)

BM004609
BM004609-UN-11FEB16

H93580
H93580-UN-05MAR09

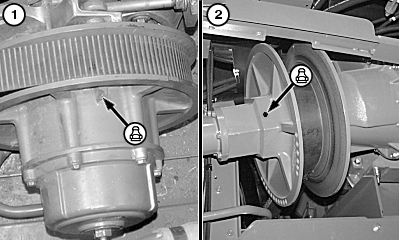

  1. IMPORTANT: Separator Variable Speed Driven and Driver Sheaves: Pump 20—25 shots of grease into fitting. DO NOT OVER GREASE.

    Separator Variable Speed Driven Sheaves - Rotate sheaves to access fitting.

  2. NOTE: Start machine and cycle separator through full speed range a couple of times to distribute grease evenly.

    Separator Variable Speed Driver Sheave - Close sheaves (high speed) before greasing fitting on outer sheave hub. Rotate sheave to access fitting. Cycle cylinder speed to distribute grease if operated at high speed all the time.

OU90500,000056A-19-20160211
