Every 250 Hours (S660 and S670)

1. IMPORTANT:

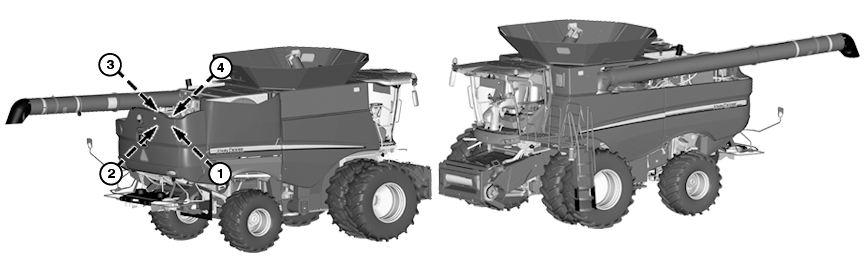

   BM004610-UN-11FEB16


   H97455-UN-30JUL10


   H107149-UN-06MAR13

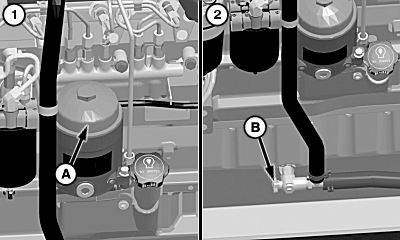

   A - Cap

   B - Drain

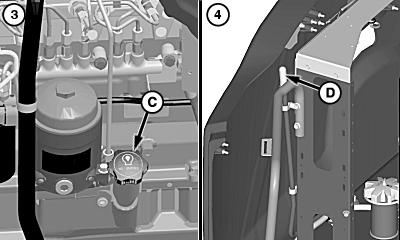

   C - Dipstick

   D - Fuel Tank Breather

   Change oil and filter every 100 hours if fuel contains a high sulfur content.

   Change oil and filter every 250 hours if crankcase filled with seasonal viscosity grade oil or John Deere Torq-Gard™.

   If using John Deere Plus-50™ or Plus-50™ II engine oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

   Only to S660 equipped with Tier 3/Stage IIIA Engine and if using John Deere Plus-50™ II engine oil and a John Deere filter, service interval can be extended by 100 percent. Example: 250 Hours extends to 500 Hours¹.

   Engine Crankcase Top Load Oil Filter - Remove cap (A) and remove filter. Replace filter and install cap. Tighten cap to specifications.

   Item	Measurement	Specification
   Oil Filter Cap	Torque	40 N·m (30 lb·ft)

---




2. Engine Crankcase Top Load Oil - Open drain (B) to remove oil.

3. Engine Crankcase Top Load Oil - Remove dipstick (C) to fill and check oil level after filling.

4. Fuel Tank Breather - Visually inspect fuel tank breather (D). Do not allow debris to collect on breather. Remove fuel tank breather from hose and clean.
